TRUMPF TRUMATIC 2000Rبرج اللكمات

بطاقة الهوية
431921
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2003
الموقع
اسبانيا
رقم المخزن
ES-PUN-TRU-2003-00001

الوصف

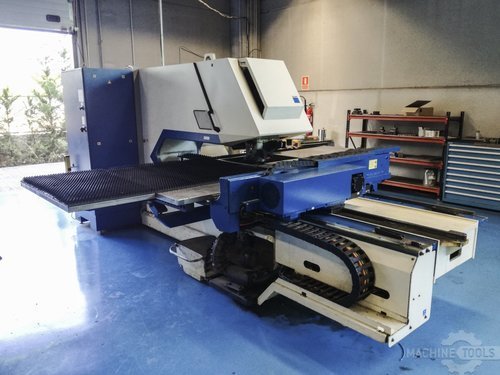

This Trumpf Trumatic 2000 R Turret Punching Machine from 2003 was manufactured in Germany and has a total of approximately 38000 production hours. Operated through a Trumpf Control unit, this machine has mainly worked with steel and aluminium sheets with up to 2 mm of thickness.

المواصفات

تحويل المواصفات للمتري
حمولة
22 T
محطة تارت#
9

Trumpf Trumatic 2000 R Turret Punching Machine

Production Hours: 38000

General Data:
Measurements width: 5530 mm
Measurements depth: 2300 mm
Measurements height: 2250 mm
Machine weight: 9200 kg

Control Unit:
Brand: Trumpf

Main Drive:
Punching force: 180 kN
Maximum sheet thickness: 4 mm

Movement:
X-Axis Movement: 1250 mm
Y-Axis Movement: 1250 mm

Table:
Outer length: 4000 mm
Outer width: 1250 mm

Max Material Thickness:
Steel: 4 mm

Media:
Main electronic connection: 400 V / 50 Hz
Power consumption: 17 kVA
