S/N: 913 New: 1981

EQUIPPED WITH:
El Dorado "Mega Flo" F-18 High-Pressure Coolant System w/ Filtration. Spindle Load Meter. Bijur Automatic Lubrication System. Digital Readout for X- & Y-Axes. Digital Readout for Z-Axis.

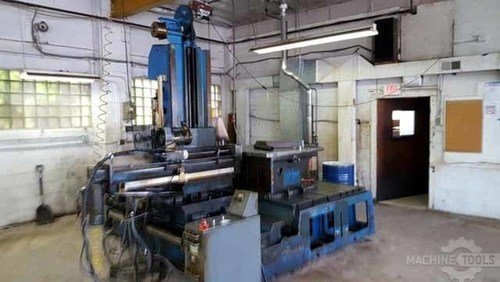

Note: The Drill is Mounted on a Pratt & Whitney Machine Base w/ a 76" x 60" T-Slotted Table.
There is Approximately 64" of Longitudinal Travel and 36" of Vertical Spindle Travel. There is Also an Auxiliary 48" x 48" T-Slotted Table.

SPECIFICATIONS:
Drilling Capacity - Mild Steel 0.055" - 0.750"
Stroke Length 48"
Spindle Speeds 480-3895 RPM
Feed Rate 0.1 - 99.9 IPM
Rapid Traverse Rate 200 IPM
Spindle Motor 1.5 HP 230/460V 3/60 1140 R
Coolant Pressure 200-2000 PSI
Coolant Volume 0-18 GPM
Coolant Reservoir Capacity 90 gallons
Overall Dimensions - Drill (Approx.) 148" x 128" x 122" H
Overall Dimensions - Coolant (Approx.) 80" x 41" x 36" H
Drill Weight (Approx.) 8000 lbs
Coolant Weight (Approx.) 1000 lbs
