BROWN & SHARPE 818 MICROMATER SERIES II - FACTORY REBUILT 1989المطاحن سطح الترددية

بطاقة الهوية
432423
علامة تجارية
موديل
818 MICROMATER SERIES II - FACTORY REBUILT 1989
السنة
1989
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157531
صور ( 10 ) / فيديو
بطاقة الهوية
432423
علامة تجارية
موديل
818 MICROMATER SERIES II - FACTORY REBUILT 1989
السنة
1989
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157531

الوصف

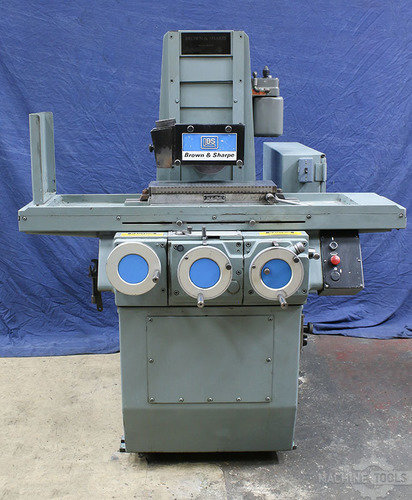

8" Width 18" Length Brown & Sharpe 818 MICROMATER SERIES II - FACTORY REBUILT 1989 SURFACE GRINDER, HYD. X-Y FEEDS, FF VERT., COOLANT, PMC

المواصفات

تحويل المواصفات للمتري
الجدول-W
8 "
الجدول-L
18 "

8" x 18" BROWN & SHARPE "#818 MICROMASTER SERIES II" PRECISION HYDRAULIC SURFACE GRINDER  ** PURCHASED FROM A WORLD REKNOWED JEWELRY MAKER - EXTREMELY NICE MACHINE TOOL **   S/N: 523-8181-6000    NEW: 1975/FACTORY REBUILT IN 1989    WIDTH& LENGTH GROUND ..................... 8" X 18" HEIGHT OF WORK GROUND W/STD. 7" WHEEL ...... 15-1/2" MAXIMUM LONGITUDINAL TRAVEL ................ 22" LONGITUDINAL TABLE SPEED ................... 5 TO 100 FPMMAXIMUM CROSS TRAVEL ....................... 7" AUTOCROSSFEED INCREMENT PER TABLE PASS ..... UP TO 1/4"HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED TO READ TO .................................. 0.0002" VERTICAL TRAVEL OF SPINDLE ................. 15-3/4" HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED TO READ TO ................................. 0.0002" FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ... 0.0001" APPROXIMATE MACHINE WEIGHT ................. 3,000 LBS APPROXIMATE FLOOR SPACE .................... 56"L X 62"D X 68"    EQUIPPED WITH:HYDRAULIC LONGITUDINAL & CROSS FEEDSFINE FEED KNOB FOR VERTICAL HANDWHEEL (.0001" GRADUATION) BROWN & SHARPE 2 H.P. DIRECT DRIVE SUPER-PRECISION SPINDLE8" X 18" O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK "BIJUR" "SPRAYMIST" COOLANT SYSTEMSELF-CONTAINED HYDRAULIC SYSTEMB & S DIRECT-DRIVE SPINDLE (NO BELTS), 1.5 H.P. MOTORMOTORS ON THE MACHINE ARE 3/60/230-460 VOLTSMACHINE IS PRESENTLY WIRED FOR 230 VOLTS    ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **** EXCEPTIONAL CONDITION & APPEARANCE - ORIGINAL CONDITION **** PURCHASED FROM A WORLD REKNOWNED JEWELRY MAKER  **** - EXTREMELY NICE MACHINE TOOL **

FOR MORE INFORMATION: Call Andy at 973-497-7600
