NARDINI MS1640مخارط المحرك

بطاقة الهوية
433066
علامة تجارية
موديل
السنة
1997
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157718
الثمن

الوصف

16" Swing 40" Centers Nardini MS1640 ENGINE LATHE, Inch/Metric, Gap, Steady&Follow, Toolpost, 3-Jaw,

المواصفات

تحويل المواصفات للمتري
الأرجحة
16 "
المراكز
40 "

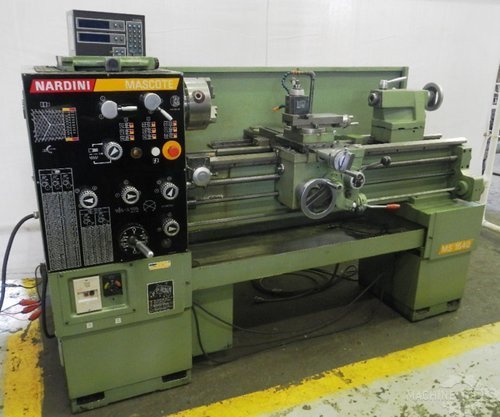

16" X 40" NARDINI ENGINE LATHE LATHE

MODEL: MASCOTE MS1640, S/N: D3JD5272, NEW: 1997



SPECIFICATIONS:

SWING OVER BED ...................... 16 1/8"

SWING OVER CROSS SLIDE .............. 10 1/4"

SWING IN GAP ........................ 22"

LENGTH OF GAP ....................... 4 3/4"

DISTANCE BETWEEN CENTERS ............ 40"

CROSS SLIDE TRAVEL .................. 9 1/4"

SPINDLE NOSE ........................ D1-5 CAMLOCK

SPINDLE SPEEDS (18) ................. 31.5 - 2,500 RPM

SPINDLE HOLE ........................ 1 21/32"

TAILSTOCK TAPER ..................... MT #3

TAILSTOCK QUILL TRAVEL .............. 5 1/8"

INCH THREADING RANGE (48) ........... 3 1/2 - 42 TPI

METRIC THREADING RANGE (48) ......... 0.40 - 7.00 MM PITCH

INCH FEED RANGE (48) ................ 0.0016 - .0399 INCH / REV

METRIC FEED RANGE (48) .............. 0.042 - 1.013 MM / REV

MOTOR ............................... 4.0 / 6.3 HP 2-SPD 220V

DIMENSIONS .......................... 87 X 36 X 55 HIGH

WEIGHT .............................. 3,400 LBS.



EQUIPPED WITH:

ACU-RITE TURNMATE 2-AXIS DRO,

TAILSTOCK,

THREADING DIAL,

STEADY REST/FOLLOW REST,

QUICK CHANGE TOOLPOST,

8" 3-JAW CHUCK,

TAPER ATTACHMENT,

5-POSITION TURRET CARRIAGE STOP,

INCH/METRIC BEZELS ON CROSS SLIDE,

BACKSPLASH,

LEVELLING PADS

FOR MORE INFORMATION: Call David at 973-497-7570
