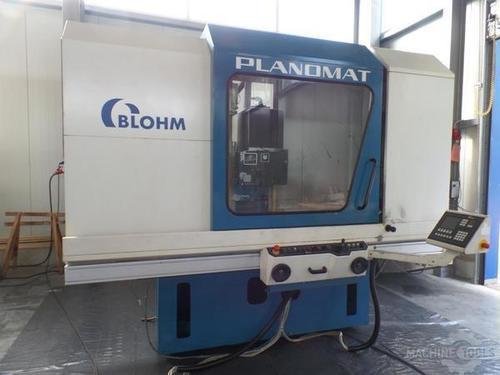

BLOHM PLANOMAT HP 608المطاحن الملف الشخصي

بطاقة الهوية
433243
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2001
الموقع
Bayern
المانيا
عودة السياسة
كما هو
رقم المخزن
1541
صور ( 4 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على BLOHM PLANOMAT HP 608 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
433243
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2001
الموقع
Bayern
المانيا
عودة السياسة
كما هو
رقم المخزن
1541

المواصفات

تحويل المواصفات للمتري
الجدول-W
23.62 "
الجدول-L
31.5 "
قطر العجلة
15.75 "
عرض العجلة
1.181 "
ثقب العجلة
5 "
القدرة
20.1 hp
السرعة
3,400 RPM
CNC تحكم
CNC (SIEMENS SINUMERIK 840D)

Precision-Surface and Profil Grinder

manufacturer BLOHM
type PLANOMAT 608
built 2001
Working area
Grinding length 800 mm
Grinding width 600 mm
max. distance table to spindle center 700 mm
max. table load 800 kg
X-axis – table longitudinal motion

Table clamping area with additional space 1.200 x 600 mm
Table travel longitudinal max.
900 mm
Table speed 30 – 3000/300 – 30.000 mm/min steplessly variable
Grinding travel adjustment by soft key on control panel
Guideways pretensioned roller guides
Table drive Servo motor with ball screw drive
manual table adjustment via joystick on the control panel
measuring system 0,001 mm rotatory
Y-axis – Vertical adjustment of the grinding wheel
Max. Distance table to spindle center 700 mm
Rapid traverse 3.750 mm/min.
Guideways pretensioned roller guides
Axis drive Servo motor with ball screw drive
Measuring system 0,001 mm rotational

Z-axis – transverse adjustment of grinding wheel
Automatic cross travel max. 560 mm
Transverse movement automatically 40 – 4.000 mm/min stepless
Optionally intermittent or continuous
Rapid traverse 4.000 mm/min.
Guideways pretensioned roller guides
Axis drive Servo motor with ball screw drive
Measuring system 0,001 mm rotational
Grinding spindle
Spindle speed max. 3.400 1/min
Input power 15 kW
Three-phase motor with frequency converter
Max. Dimensions of grinding wheel (DA x B) 400 x 80 mm
Bore grinding wheel 127 mm
Constant peripheral speed 35 m/sec
Max. Peripheral speed 45 m/sec Unlockable via key switch
Dressing
Dressing unit pneumatically hinged, mounted on the left side next to the magnetic clamping plate Dressing amount is automatically compensated

Space required including coolant system, weight
Length x width x height 4,6 x 4,2 x 2,45 m
weight ca. 4.900 kg

Electrical connection
Connecting power 19 kVA
Operating voltage 400 V
Power frequency 50 Hz
Coolant cleaning equipment
Coolant system with belt filter (tank capacity 1,400 l) consisting of:
 Belt filter with a cleaning surface of 2.25 m² for a flow rate of 250 l / min
 Supply pump 200 l / min, 4 bar
 Additional pump for water trough flushing and rinsing gun
 Cooling unit for coolant emulsion with max. 5% grinding concentrate
 Power 4.9 kW (4,200 kcal / h), refrigerant CFC-free
Equipment / Accessories
 Basic machine with work enclosure closed at the top
 Spindle drive 15 kW, frequency controlled
 Manual balancing device MPM incl. Vibration sensor and speed sensor
 Belt filter coolant cleaning system Tank capacity 1,400 liters
 Pneumatically folding dressing unit
 Electro-permanent magnetic clamping plate 800 x 600 mm, transverse pole pitch 4 mm, with 8-fold adhesion control
 2 pieces of grinding wheel flanges
 1 pc. balancing mandrel
 Machine documentation incl. CE conformity declaration
 Finish: RAL 5009 azure / RAL 9002 gray white
 Grinding spindle insert renewed 02-2016
