DMG MORI DECKEL MAHO DMU 50 ECOLINEمراكز التجهيز العمودي (5 محور أو أكثر)

بطاقة الهوية
433555
علامة تجارية
موديل
DECKEL MAHO DMU 50 ECOLINE
حالة
تستخدم - ممتاز
السنة
2013
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
064261
صور ( 4 )
بطاقة الهوية
433555
علامة تجارية
موديل
DECKEL MAHO DMU 50 ECOLINE
حالة
تستخدم - ممتاز
السنة
2013
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
064261

المواصفات

تحويل المواصفات للمتري
X
19.7 "
Y
17.7 "
Z
15.7 "
أكسات
5
القدرة
17.4 hp
RPM
8000 rpm
# ATC
30
انحناء
CAT 40
CNC تحكم
CNC (SIEMENS)

SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

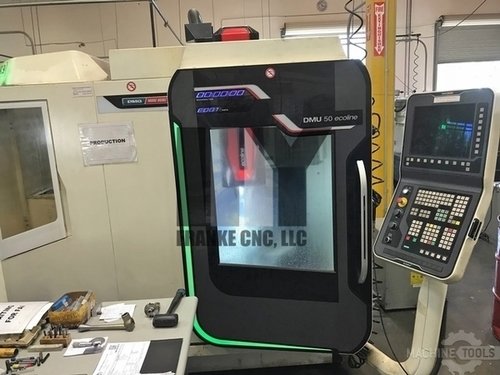

One used 2013 DMG MORI DECKEL MAHO DMU 50 ecoline 5-Axis VMC:

May be inspected in plant under power by appointment

SIEMENS CNC Control with electronic handwheel

WORK AREA
Traverse Path X (longitudinal).......................... 19.7" (500 mm)
Traverse Path Y (across)................................ 17.7" (450 mm)
Traverse Path Z (vertical).............................. 15.7" (400 mm)

MAIN DRIVE
Type of Drive.................................... AC-controlled digital
Spindle Speed Range....................................... 20-8,000 RPM
Torque 40% ED...................................... 61.22 ft/lb (83 Nm)
Spindle Drive Power 100% DC............................. 12.1 HP (9 kW)
Spindle Drive Power 40% DC............................. 17.4 HP (13 kW)
Spindle Taper................................................... CAT 40

FEED DRIVES
Drive Type X/Y/Z................................. AC-controlled digital
Rapid Traverse X/Y/Z................................ 472 IPM (12 m/min)

SWIVEL ROTARY TABLE WITH DIGITAL DRIVES
Type of Drive.................................................. Digital
Dimensions........... 24.8" diameter x 19.7" (630 mm diameter x 500 mm)
Maximum Table Load.................................... 440 lbs (200 kg)
Table Clamping............................................... Hydraulic
Table Rotation.......................... 360 Degrees (full Fourth Axis)
Table Swivel Range....................... 115 degrees (-5/+110 degrees)

30 POSITION TOOL CHANGER
Positions........................................................... 30
Maximum Tool Weight.................................... 13.2 lbs (6 kg)
Maximum Tool Length..................................... 11.8" (300 mm)
Maximum Tool Diameter without vacant positions........... 3.15" (80 mm)
Maximum Tool Diameter with vacant positions............. 5.12" (130 mm)

FLOOD COOLANT UNIT
Coolant tank capacity............................... 18.5 gallon (70 l)
Pump capacity................................ 4.5 gallon/min (17 l/min)
Number of nozzles.................................................... 6

INSTALL DATA
Main connection................................................... 400V
Power input..................................................... 17 KVA
Compressed air connection............................... 87 PSI (6 bar)
Machine weight...................... Approximately 8,818 lbs (4,000 kg)
Number of leveling shoes............................................. 4

EQUIPPED WITH:
Self contained coolant tank with pump
Chip pan
Chip conveyor
Touch type tool length & diameter measuring
Coolant rinsing pistol
4-color signal lamp

This is a temporary description subject to change and amplification.
