CINCINNATI 430-18المطاحن الأفقي عادي

بطاقة الهوية
433677
علامة تجارية
CINCINNATI
موديل
430-18
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
18348
صور ( 10 )
بطاقة الهوية
433677
علامة تجارية
CINCINNATI
موديل
430-18
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
18348

المواصفات

تحويل المواصفات للمتري
الجدول الحجم-W
18 "
الجدول الحجم-L
80 "

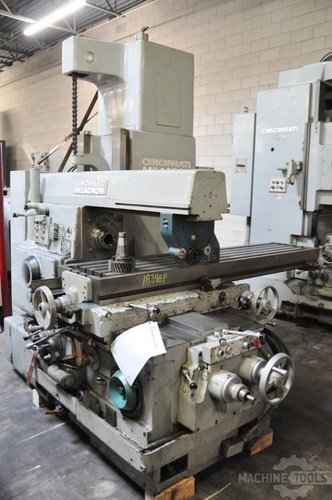

CINCINNATI 430-18 VERCIPOWER HORIZONTAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $17,500.00

HMC Stock No. 18348-P
Machine Serial No. 311041H76-0003
Machine Model No. 430-18 VerciPower
New Date: Circa Mid 1970's

Table Size: 18" x 80" with (3) 13/16" T-Slots on 3 1/4" Centers
Spindle Taper: #50 NST in Horizontal Spindle & Vertical Head
(24) Horizontal Spindle Speeds: 16 to 1600 RPM
Power Feeds: 3/8 to 90 IPM
Rapid Traverse: Up to 150 IPM
Table Travel Longitudinal: 42"
Table Travel Cross: 16"
Vertical Head Travel: 22"

EQUIPPED WITH:
Hard Replaceable Saddle and Vertical Ways in Very Good Condition
Vertical Head Mounts to the Overarm and Bolts to Column Face
Vertical Head is Driven via Horizontal Spindle with Drive Gear Tool (supplied)
Vertical Head Swivels Left-Right 90 Degrees Each Way
Automatic Table Cycle for Longitudinal Axis
Front and Side Operation Controls
Rapid Traverse to All Axises
Manual Drawbars for Both Heads
Table Climb Mill Feature
Automatic Table Cycle
(2) Adjustable Traverse Stops on All Axises
(2) Arbor Support Brackets (one is missing the center bushing)
Power Feeds and Speeds Selector
Central Way Lubrication System
Coolant Pump or Piping
Missing Knee Crank Handle
30 HP Main Motor, 230/460 Volts
7-1/2 HP Feed Motor, 230/460 Volts
Wired for 3 Phase, 60 Hz, 230/460 Volts, Presently Wired for 230 Volts
Overall Size: 103" L-R x 96" F-B x 106" High (on 4" blocks) x 16,700 Lbs.

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $17,500.00

HMC Stock No. 18348-P
Machine Serial No. 311041H76-0003
Machine Model No. 430-18 VerciPower
New Date: Circa Mid 1970's

Table Size: 18" x 80" with (3) 13/16" T-Slots on 3 1/4" Centers
Spindle Taper: #50 NST in Horizontal Spindle & Vertical Head
(24) Horizontal Spindle Speeds: 16 to 1600 RPM
Power Feeds: 3/8 to 90 IPM
Rapid Traverse: Up to 150 IPM
Table Travel Longitudinal: 42"
Table Travel Cross: 16"
Vertical Head Travel: 22"

EQUIPPED WITH:
Hard Replaceable Saddle and Vertical Ways in Very Good Condition
Vertical Head Mounts to the Overarm and Bolts to Column Face
Vertical Head is Driven via Horizontal Spindle with Drive Gear Tool (supplied)
Vertical Head Swivels Left-Right 90 Degrees Each Way
Automatic Table Cycle for Longitudinal Axis
Front and Side Operation Controls
Rapid Traverse to All Axises
Manual Drawbars for Both Heads
Table Climb Mill Feature
Automatic Table Cycle
(2) Adjustable Traverse Stops on All Axises
(2) Arbor Support Brackets (one is missing the center bushing)
Power Feeds and Speeds Selector
Central Way Lubrication System
Coolant Pump or Piping
Missing Knee Crank Handle
30 HP Main Motor, 230/460 Volts
7-1/2 HP Feed Motor, 230/460 Volts
Wired for 3 Phase, 60 Hz, 230/460 Volts, Presently Wired for 230 Volts
Overall Size: 103" L-R x 96" F-B x 106" High (on 4" blocks) x 16,700 Lbs.
