DAEWOO DOOSAN ACE HP 5500مراكز المعالجة الأفقي

بطاقة الهوية
433770
علامة تجارية
موديل
DOOSAN ACE HP 5500
حالة
مستعملة - جيد
السنة
2006
الموقع
كرواتيا
رقم المخزن
HR-MIL-DAE-2006-00001

الوصف

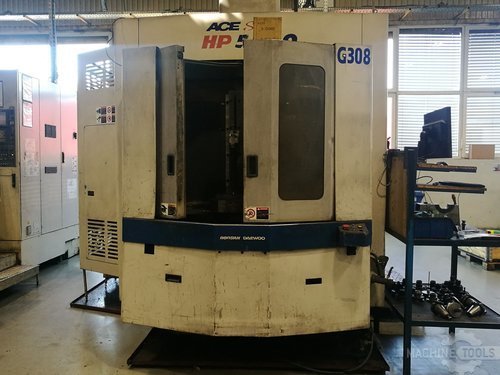

This DAEWOO Doosan ACE HP 5500 Horizontal Machining Center from 2006 was made in Korea and has a working history of 51000 production hours. Operated through a FANUC 18i-MB Control unit, this versatile and precise machine has mainly worked with bronze and cast iron during the past.

المواصفات

تحويل المواصفات للمتري
X
31.5 "
Y
27.56 "
Z
29.53 "
RPM
6000 rpm
عرض اللوح
19.69 "
طول اللوح
19.69 "
أكسات
3

DAEWOO Doosan ACE HP 5500 Horizontal Machining Center

Production Hours: 51000

General Data:
Measurements width: 3300 mm
Measurements depth: 6500 mm
Measurements height: 3200 mm
Machine weight: 17000 kg

Control Unit:
Brand: FANUC
Model: 18i-MB
CNC main language: English

Main Drive:
Number of spindles: 1
Spindle speed range: 6000 1/min

Movement:
X-Axis Movement: 800 mm
Y-Axis Movement: 700 mm
Z-Axis Movement: 750 mm

Workpiece:
Workpiece weight: 500 kg

Table:
Outer length: 500 mm
Outer width: 500 mm

Media:
Main electronic connection: 220 50/60 Hz
Power consumption: 67.35 kVA
Chip conveyor: Yes

Additional Equipment:
* ATC 60 places
* 2 pallets 500x500
* Round table 360°
