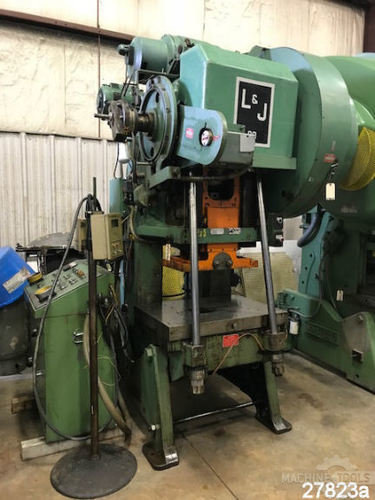

80 TON L&J O.B.I. PUNCH PRESS
Model no. 80
Air clutch & brake
Air counterbalance
Flywheel type
Tie rod construction
Stroke: 3"
Slide adjustment: 4"
Shut height S.D.A.U.: 14-1/4" to top of bed
Area of bed: 36" L-R x 26" F-B
Bolster thickness: 3-1/2"
Area of slide: 24" L-R x 14" F-B
Shank hole diameter: 2-1/2"
Throat depth: 14"
Opening through back: 17"
Floor to top of bed: 32"
S.P.M. approx.: 30 - 100
EQUIPPED WITH: Free standing control with dual palm buttons for run
with emergency & top stop buttons
Pushbuttons for start - stop - fast - slow
Key selector switch for single - inch - continuous
Bijur automatic oil lubrication
Rotary cam limit switches
Air surge tanks
Knockout slot in slide
10 HP 1000 RPM 240/480/3/60 Reeves variable speed motor
Weight approx. 15,000 lbs.
Overall dimensions approx. 72" L-R x 91" F-B x 122" H - press
33" L-R x 20" F-B x 47" H - control
Serial no. 78190A
Stock no. 27823
FOB ELK GROVE VILLAGE, IL
