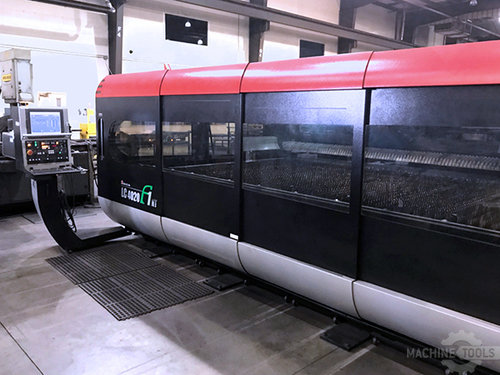

AMADA LC 4020قاطعات الليزر

بطاقة الهوية
434347
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2009
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
2374820

الوصف

Equipped with: Twin adaptive optics, NC assist gas, NC Focus, Oil shot, Cut Process Monitoring, Nozzle Cleaner, High-Speed, low maintenance linear drives on all axes, Amada EZ Cut system included (Nitrogen), Door Open, WACS

المواصفات

Specifications:

Travel Method - Stationary table, Flying Optic
Control Method - X, Y and Z simultaneous 3 axis control
Drive Motors - Fanuc AC Servo Motors
Maximum Sheet Size - 80" (Y) x 160" (X)
Maximum Axis Travel - 81" (Y) x 168" (X) x 3.94" (Z)
Maximum Axis Positioning Speed - 4,724"/min (6,681"/min 45° vector)
Maximum Speed Z-Axis - 4,724 inches per minute
Positioning Accuracy - 0.0004" for the entire table
Acceleration - X, Y: 1.5G Z: 3G
Cutting head - Cartridge-type
Z-axis sensor - HS-2007 (Anti-plasma, noise resistant)
Maximum Material Weight - 2,000 lbs.
Assist Gas - Automatic 4 ports with NC pressure Control
Machine Weight - 28,660 lbs. (including oscillator)
Electrical Requirements - 208V, 3 Phase, 60Hz
Laser Power - 6000 watts
CNC Controller: Fanuc NT
Display: LCD Color Graphics Display
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)
Standard Memory: 2 MB
Operating Modes: Automatic, MDI and Manual
