HARDINGE HLV-Hمخارط الدقة

بطاقة الهوية
434415
علامة تجارية
موديل
السنة
1985
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157700
الثمن

الوصف

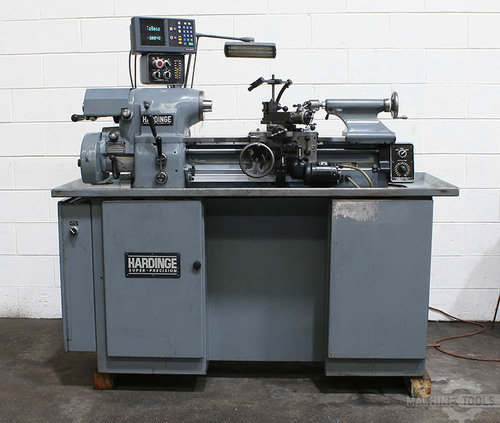

11" Swing 18" Centers Hardinge HLV-H PRECISION ENGINE LATHE, VariSpeed,Inch/Metric,DRO,3-Jaw,5C-Collet Closer,

المواصفات

تحويل المواصفات للمتري
الأرجحة
11 "
المراكز
18 "
القلوظة
yes
القدرة
0.5 hp
RPM
3000

HARDINGE SUPER PRECISION TOOL ROOM LATHE

MODEL: HLV-H, S/N HLV-H-12052-T, NEW 1982



SPECIFICATIONS:

SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING

SPINDLE NOSE ......................... HARDINGE TAPER

VARIABLE SPINDLE SPEEDS .............. 125-3,000 R.P.M.

HOLE THROUGH SPINDLE ................. 1-1/4"

SWING OVER BED ....................... 11"

SWING OVER CARRIAGE .................. 9"

SWING OVER CROSS SLIDE ............... 6"

DISTANCE BETWEEN CENTERS ............. 18"

COMPOUND SLIDE TRAVEL ................ 3"

CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.

CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.

TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"

TAILSTOCK SPINDLE TAPER .............. #2 MT

RANGE OF THREADS IN GEAR BOX, (27) ... 11-108 T.P.I.

APPROXIMATE MACHINE WEGHT ............ 1,700 LBS.



EQUIPPED WITH:

- METRIC THREADING ATTACHMENT CONSISTING OF LARGE GEAR BOX

COVER, BRACKET,

- ACU-RITE TWO AXIS DIGITAL READOUT

- 5" DIAMETER HARDINGE 3-JAW CHUCK

- BALL BEARING QUICK ACTING 5C COLLET CLOSER

- ADJUSTABLE LONGITUDINAL CARRIAGE STOPS

- PLAIN CENETER FOR TAILSTOCK

- HEAVY DUTY FULL BEARING TAILSTOCK

- COOLANT PUMP MOTOR

- .5 - 1 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR



INSPECT UNDER POWER IN AN NEW JERSEY WAREHOUSE





FOR MORE INFORMATION: Call David at 973-497-7570
