GLEASON 523اختبارات تروس

بطاقة الهوية
434569
علامة تجارية
موديل
حالة
تستخدم - ممتاز
رقم المسلسل
1507-03
الموقع
Michigan
الولايات المتحدة الامريكية
رقم المخزن
22020

الوصف

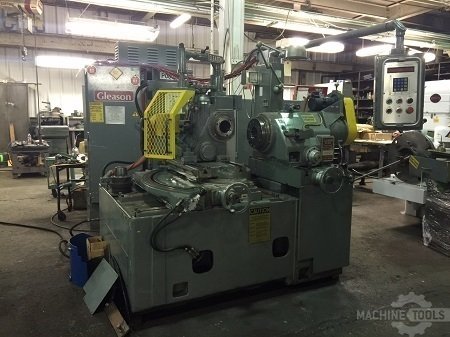

MODEL 523/552 GLEASON GEAR TESTER *FROM GEAR DEV LAB, LIKE NEW* Dell PC, HP Laserjet Printer, Lubrication System, Pneumatic System, Guarding

المواصفات

تحويل المواصفات للمتري
أقصى قطر للترس
20 "
نوع
Universal Tester
الأبعاد
100"L x 90"W x 94"H
الوزن
10,000 lbs

EQUIPPED WITH:

Dell PC
HP Laserjet Printer
Lubrication System
Pneumatic System
Guarding
110V Outlet
Worklight

CATALOG SPECIFICATIONS:

Capacities:
Gear Outside Diameter, Maximum (90 degree): 20"
Maximum Center Distance For Spurs: 10"
Range Of Shaft Angles: 0-180 degrees
Range Of Brake Torque: 0-40 Ft./lbs.
Drive Spindle Vertical Offset: -+ 4.5"
Drive Head Hor. Adjustment At Right Angles To:
Spindle Axis Away From Operator: 9.0"
Drive Head Hor. Adjustment At Right Angles To
Spindle Axis Towards Operator: 4.0"
Drive Spindle Speeds: 800 RPM
Drive Spindle:
Diameter of Taper: 6.0"
Taper Per Foot: .75"
Depth of Taper: 2.5"
Diameter of Thru Hole: 5.0"
Brake Spindle:
Diameter of Taper:3.906"
Taper Per Foot: .609"
Depth of Taper: 3.0"
Diameter of Thru Hole: 2.5'
Electrical Equipment:
Main Motor-Standard, 5 HP: 1800 RPM, 60 HZ
Optional 2-Speed, 5 HP/2.5 HP: 1800/1900 RPM, 60 HZ
Drive Spindle Speeds:
Standard: 800 RPM, 60 HZ
2-Speed: 800/400 RPM, 60 HZ
Floor Space: 64" x 87"
Height: 78"
Estimated Net Weight: 10,000#
Estimated Boxed for Export Weight: 11,750#
Overall Dimensions: 100"L x 90"W x 94"H
