FLINN & DREFFEINأفران أسفل السيارة

بطاقة الهوية
434749
علامة تجارية
FLINN & DREFFEIN
حالة
تستخدم - ممتاز
السنة
1982
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
نطاق السعر
أكثر من $100,001 USD
صور ( 8 )
بطاقة الهوية
434749
علامة تجارية
FLINN & DREFFEIN
حالة
تستخدم - ممتاز
السنة
1982
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
نطاق السعر
أكثر من $100,001 USD

الوصف

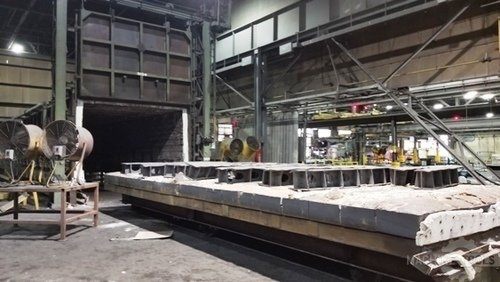

1980's Flinn & Dreffein (2) 36 ft 8" long x 15 Ft. 4" Wide Natural Gas Fired Single Car Bottom Heat Treat Furnaces Built 1980's by Flinn & Dreffein Engineering Co., Northbrook, Illinois USA Max operating temperature 2,200º F Machine has Recent Repair Work Invested. Type of fuel Natural Gas Major Specifications: Standard Furnace housing dimensions: outside length 36.0 ft 8" Inside length 34.0 ft 10" Outside width 15.0 ft 4-1/4" Inside width 13.0 ft 4" top of car to inside top of furnace 46.875" Car for Loading Parts dimensions: length 33.0 ft 8" width 12.0 ft Flanged Car wheels: Wheel diameter 18.0" Wheel thickness 5.0" distance between the wheels left to right. 7.0 ft 6" distance between each wheel front to back 13.0 ft Car travel speed 38.0 fpm Car load capacity 150.0 tons Door height 12.0 ft Door lift speed 32.0 fpm Rail spec: rail weight 105 #'s/ft total rail length 76.0 ft Complete with: • Twenty (20) North American Tempest 4442-5 low N0x burners w/30" flame length • Furnace Control System • Product carrying car with six (6) wheels, three (3) on each side • Burner rating is 1,000,000 BTU's per Burner • Total BTU rating is 20,000,000 BTU's Location: Complete Disassembly and Loading on Truck on Site is Available & Under Power for Inspection Prior. Sincerely, Mark V. Murphy Murphy Machinery Sales, Inc.

المواصفات

تحويل المواصفات للمتري
عرض الغرفة
15.4 "
طول الغرفة
34.1 "
ارتفاع الغرفة
15.4 "
الأبعاد
40 ft x 17ft x 17 ft.

1980's Flinn & Dreffein (2) 36 ft 8" long x 15 Ft. 4" Wide Natural Gas Fired Single Car Bottom Heat Treat Furnaces Built 1980's by Flinn & Dreffein Engineering Co., Northbrook, Illinois USA Max operating temperature 2,200º F Machine has Recent Repair Work Invested.

Type of fuel Natural Gas

Major Specifications:
Standard Furnace housing dimensions: outside length 36.0 ft 8"
Inside length 34.0 ft 10"
Outside width 15.0 ft 4-1/4"
Inside width 13.0 ft 4" top of car to inside top of furnace 46.875"

Car for Loading Parts dimensions:
length 33.0 ft 8" width 12.0 ft Flanged Car wheels:
Wheel diameter 18.0"
Wheel thickness 5.0" distance between the wheels left to right. 7.0 ft 6"
distance between each wheel front to back 13.0 ft Car travel speed 38.0 fpm
Car load capacity 150.0 tons
Door height 12.0 ft Door lift speed 32.0 fpm
Rail spec: rail weight 105 #'s/ft total rail length 76.0 ft

Complete with:
• Twenty (20) North American Tempest 4442-5 low N0x burners w/30" flame length • Furnace Control System
• Product carrying car with six (6) wheels, three (3) on each side • Burner rating is 1,000,000 BTU's per Burner
• Total BTU rating is 20,000,000 BTU's

Special Price:................. $ Please Email or Call.
(2) Identical Machines Available

Location: Plant Site Under Power for Inspection

Sincerely,
Mark V. Murphy
Murphy Machinery Sales, Inc.
