QUASER MV 204 II Eمراكز التجهيز العمودي

بطاقة الهوية
434842
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2001
الموقع
المانيا
رقم المخزن
DE-MIL-QUA-2001-00001

الوصف

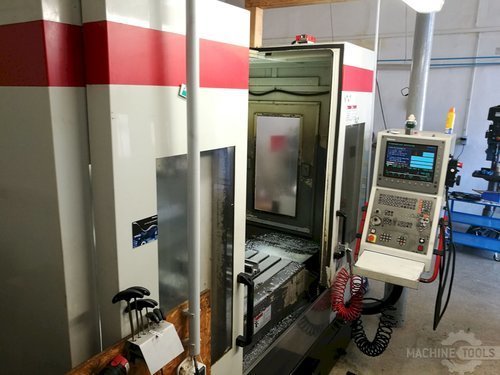

This Quaser MV 204 II E Vertical Machining Center from 2001 was manufactured in Taiwan and has a production time of 59223 working hours since then. Operated through a HEIDENHAIN Control Unit, this oil free machine has mainly worked with steel during the past with a spindle time of 21043 h.

المواصفات

تحويل المواصفات للمتري
X
40.16 "
Y
23.62 "
Z
22.05 "
الجدول-W
25 "
الجدول-L
47.24 "
أكسات
3

Quaser MV 204 II E Vertical Machining Center

Production Hours: 59223

General Data:
Measurements width: 2650 mm
Measurements depth: 2200 mm
Measurements height: 2830 mm
Machine weight: 7500 kg

Control Unit:
Brand: HEIDENHAIN
CNC main language: German
CNC language customizable: Yes

Main Drive:
Number of spindles: 1
Spindle speed range: 7500 1/min

Movement:
X-Axis Movement: 1020 mm
Y-Axis Movement: 600 mm
Z-Axis Movement: 560 mm

Table:
Outer length: 1200 mm
Outer width: 635 mm

Tools:
Max weight: 7 kg
Max tool diameter: 88 mm
Max tool length: 300 mm

Media:
Main electronic connection: 380 V
Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes
