WEBSTER & BENNETT 36Vعمودي مملة ميلز (incld VTL)

بطاقة الهوية
435114
علامة تجارية
موديل
رقم المسلسل
6753-1
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
10720
نطاق السعر
$10,001 - $50,000 USD

الوصف

36" WEBSTER BENNETT FIXED RAIL VERTICAL BORING & TURNING MACHINE, MODEL V NEW: 1976, This machine is under power for inspection in very good condition. T.R. Wigglesworth Machinery Company has specialized in the Webster & Bennett line of Vertical Turning & Boring Machines for over 70 years. From stocking the new line of Webster & Bennett Machines in our Bedford warehouse, to rebuilding machines, our staff has accumulated a tremendous amount of knowledge and experience over the years. Today our company continues to support owners of Webster Bennett VTL’s by providing OEM parts, Reclaimed parts and both New & Used accessories and manuals.

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
36 "
الأرجحة
46 "
ارتفاع الشغل U/R
23 "
القدرة
40 hp
RPM
167 rpm

ONE (1) USED

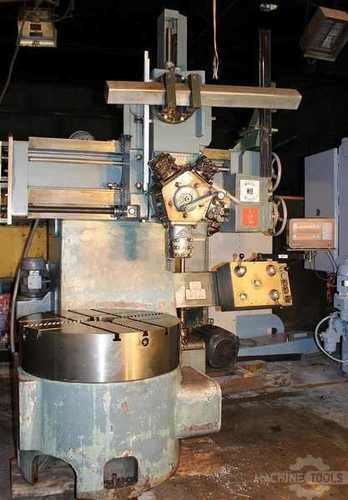

36" WEBSTER BENNETT FIXED RAIL VERTICAL BORING & TURNING MACHINE

MODEL: V
NEW: 1976
S/N: 6753-1

SPECIFICATIONS:

CHUCK DIAMETER .......................... 36"
MAX. WORKPIECE DIAMETER.................. 46"
MAX. HEIGHT UNDER TURRET................. 31"
MAX. HEIGHT UNDER CROSS RAIL............. 23"
MAX. DIAMETER TURNED WITH B2X TOOLHOLDER. 44"
VERTICAL TRAVEL OF TURRET................ 22"
HORIZONTAL TRAVEL OF TURRET.............. 25"
SPEEDS (12).............................. 6.7 - 167 R.P.M.
FEEDS (12)............................... 0.005 - 0.250 IPR
MAIN MOTOR............................... 40 HP ELECTRICS................................ 220/440 V HEIGHT................................... 118"
WIDTH.................................... 96"
LENGTH................................... 108"
WEIGHT................................... 13,664 LBS


EQUIPPED WITH:

36" CHUCK WITH TIMKEN BEARING
ACCURITE 2-AXIS DIGITAL READOUT
PENTAGON TURRET
EXTERNAL PUMP ASSEMBLY W/ MODERN SERVICEABLE FILTRATION FULLY AUTOMATIC LUBRICATION SYSTEM
NITROGEN GAS COUNTER BALANCE SYSTEM
3) B2 SHORT FLANGE BOX TYPE TOOL HOLDERS
1) B2X LONG FLANGE BOX TYPE TOOL HOLDER
MIMIK 180 TRACER
COOLANT PAN
POWER RAPID TRAVERSE

SPECIFICATIONS SUBJECT TO VERIFICATION
