CINCINNATI MILLING MACHINE CO 48-168مراكز المعالجة الأفقي

بطاقة الهوية
435358
علامة تجارية
موديل
48-168
حالة
مستعملة - جيد
السنة
1997
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
صور ( 8 )
بطاقة الهوية
435358
علامة تجارية
موديل
48-168
حالة
مستعملة - جيد
السنة
1997
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو

الوصف

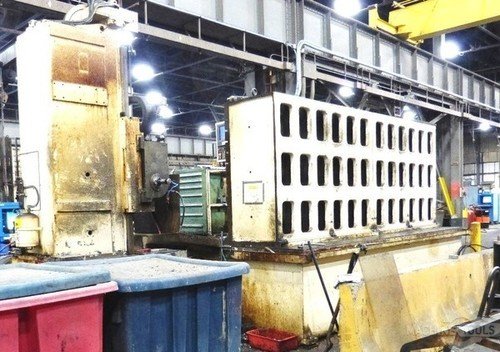

Cincinnati 48" x 168" 3-Axis CNC Horizontal Geared Head Traveling Column type Hydrotel Milling Machine with Universal Tracer Control, Built new 1963 Cincinnati Machine Tool Co. *Cicinnati Machine Co. Factory Upgraded Rebuild & Fanuc 16M CNC Control in 1997 * Fully Installed Under Power for Inspection

المواصفات

تحويل المواصفات للمتري
X
168 "
Y
92 "
Z
52 "
القدرة
50 hp
RPM
1600 rpm
عرض اللوح
48 "
طول اللوح
168 "
انحناء
NMTB50
أكسات
3
الوزن
110,000 Lbs
CNC تحكم
CNC (FANUC 16M)

Cincinnati 48" x 168" 3-Axis CNC Horizontal Geared Head Traveling Column type Hydrotel Milling Machine with Universal Tracer Control, Built new 1963 Cincinnati Machine Tool Co. *Rebuild & Upgraded Fanuc 16M CNC Control all Drives in 1997

Major specifications:
Table Dimensions:
Length 168.0"
Width 48.0"
Vertical travel 52.0"
Additional for Clearance 16.0"
Height spindle center to table top: max. 74.0" min 2.0"
Spindle rpm range 0 to 1,600 rpm
Feed speed range 0 to 180"/minute
Ram drive unit ratio 28.04 to 1
Cross adjustment of spindle carrier 18.0"
Max height center of spindle in horizontal position to table 92.750"
Max height of face of overarm spindle to table top 82.0"
Max distance horizontal spindle to outer edge of table 62.125"
Taper in horizontal spindle NMTB50
Height table top to floor 33.750"
Maximum swivel of vertical overarm spindle 360º
Main drive motor 50.0 hp
Hydraulic power unit motor 20.0 hp
Overall dimensions w/o overarm attachment:
Length 416.5"
Width 158.7"
Height 179.0"
Overall dimensions with overarm attachment:
Length 416.5"
Width 173.7"
Height 179.0"
Machine Net weight (approx) 110,000 Lbs.
Various weights: Column 670 lbs
Column counter weight 8,950 lbs
Angle Bracket: Lower 10,665 lbs
Upper 7,180. lbs
Front bed 2,190. lbs
Rear bed 14,620. lbs
Saddle 5,980.0 lbs
Spindle column 2,730.0 lbs

Equipped with:
GE Fanuc Alpha Series Servo Drive 16-M Controls
X-axis A30/1200 Y-axis A30/1200 Z-axis A22/2000 • QES 1500 Progressive & Interface Units
• Industrial LCD Monitor • GLEE 17C2 Series
• Renishaw Probe System • 5 H.P. independently motorized vertical overarm attachment with 360° swivel
• Trabo Lube System • Heavy Angle Bracket • (2) Double 12" Chip Conveyors • Electrics 460/3/60

Machine is Full Installed, this machine is in good working condition and Can be Inspected running under power.
Added Available Tooling List Confirming.

Special Price: Please Email or Call Fair Offers Considered
Machine Prep & Rigging is available at this location.
