ROWE, BRADBURY & TISHKEN 130-3.1/4-18خطوط تغذيه البكر

بطاقة الهوية
435416
علامة تجارية
ROWE, BRADBURY & TISHKEN
موديل
130-3.1/4-18
الموقع
الولايات المتحدة الامريكية
رقم المخزن
13355
الثمن
صور ( 10 )
بطاقة الهوية
435416
علامة تجارية
ROWE, BRADBURY & TISHKEN
موديل
130-3.1/4-18
الموقع
الولايات المتحدة الامريكية
رقم المخزن
13355
الثمن

الوصف

*** WE TAKE TRADES | 40" x .110" x 16,000 lb Panel Rollforming Line: Rowe decoiler & straightener, 18 stand Bradbury rollformer, 50 ton Tishken flying pres, 50 on Tishken flying shear. Recently updated with new VFD's and PLC controls.

المواصفات

تحويل المواصفات للمتري
أقصى وزن للملف
16,000 lb
أقصى عرض للملف
40 "
أقصى قطر للملف
60 "
أقصى سمك
0.11 "

We are pleased to offer for your consideraton:

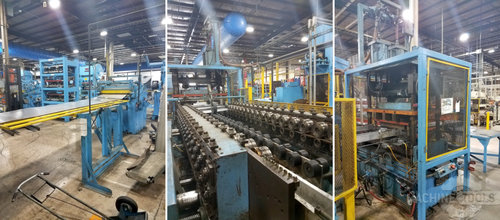

(1) 40" x .110" x 16,000 lb Rowe, Bradbury & Tishken Panel Rollforming Line

Stock Number: 13355
List Price: $185,000

Manufacturer: Bradbury, Rowe & Tishken

Rowe Uncoiler: *** Price: $24,500.00 ***
... Model number: 16040-DSJ
... Serial number (Year): 29204 (1997)
... Maximum coil weight: 16,000 lbs.
... Maximum coil OD: 60"
... Stock width: 40"
... Speed: 20 FPM / 3.5 RPM
... Line direction: Left to right
... Air supply: 120 PSI
... Power requirements: 480V, 3PH, 60 Hz
... Approximate dimensions: 117" x 71" x 100" high (8,000 lbs)
Rowe straightener: *** Price: $9,750.00 ***
... Model number: C3-40
... Serial number (Year): 28141 (1993)
... Maximum width: 41"
... Maximum thickness (mild steel): 0.110"
... Approximate dimensions: 84" x 87" x 82" high (9,000 lbs)
Bradbury rollformer: *** Price: $89,500.00 ***
... Type: Dual head (adjustable) duplex rollformer
... Model number: 130-3.1/4-18
... Serial number (year): 14762 (1987)
... Number of forming stations: 18
... Rollspace: 14-1/2" to 48"
... Diameter of spindles: 1-1/2"
... Vertical adjustment: 4-1/2" to 4-3/8"
... Horizontal center distance: 7"
... Rollspace each head: 3-1/4"
... Passline height: 42"
... Tooling gear ratio, bottom to top: 1.5714 to 1
... Standard workspeed: 80 FPM +/- 4 FPM
... Line direction: Left to right
... Motor: 10 HP
... Power requirements: 480V / 3 PH / 60 Hz
... Approximate dimensions: 153" x 102" x 73" High (25,000 lbs)
Tishken presses (2): *** Price: $59,500 (Shear) $49,500 (Press) ***
... Model number: AC0-S-50
... Serial numbers (year): Press: 20202 (1989), Shear: 21854 (1997)
... Tonnage: 50
... Distance between posts: 49" x 21"
... Diameter of posts: 3"
... Diameter of cylinder rods: 3"
... Adjustable stroke range: 1" to 3"
... Height from floor to die (adjustable): 33" to 38"
... (2) Knockouts in platen on stamping press: 20" x 15"
... (1) Knockout in base on stamping press: 20" x 37"
... Approximate weight, press & shear: 11,000 lbs (each)
... Approximate dimensions: 88"L x 60"W x 109"H (shear 41"W)
... Approximate dimensions with guards: 91"L x 60"W x 138"H (shear 51"W)

Features:
16,000 lb x 40" Rowe uncoiler: With Allen Bradley 1336 Plus II variable frequency drive | Powered expansion

40" x .110" Rowe straightener: Allen Bradley MicroLogix 1000 PLC | 7-roll, 3 over 4 roll configuration

18 stand Bradbury rollformer: With reverse & jog functions | Brake motor-gear reducer drive | Spindles mounted intapered roller bearings | Powered head traverse system - located from center in and out, preset locations through encoder and counter

50 ton Tishken flying press & 50 ton Tishken flying shear (tooling not included): Pnematic | Double piston actuation | 4-post die head | Adjustable shut height | Lateral adjustment for lineup | Knockouts on stamping press | D.C. trip circuit | Production counter | Automatic trip | Air valves with muffler

Updated Operator Control Panel: Allen Bradley Panelview Plus 700 display | Allen Bradley Powerflex 700 variable frequency drive | Allen Bradley MicroLogix 1500 PLC
