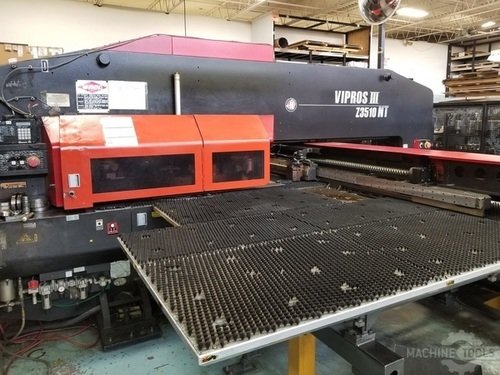

AMADA VIPROS Z3510برج اللكمات

بطاقة الهوية
435449
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2004
الموقع
Ontario
كندا
عودة السياسة
30 يوم

الوصف

A proven performer, the VIPROS III series delivers the last word on quiet and high-speed hydraulic punching. Coupled with the innovative 'Z' turret and the AMNC control this machine is easy to setup and to run. The 45-station turret features four indexable stations for even more flexibility.

المواصفات

تحويل المواصفات للمتري
حمولة
33 T
محطة تارت#
45
الأبعاد
192" X 202" X 90"H
الوزن
51,000 LB.
CNC تحكم
CNC (AMNC-PC)

Travel Method X and Y axes work piece movement
Control Method X, Y, T & C
Drive Motors Fanuc AC Servo (X, Y, T, C)
Maximum Sheet Size 50" (Y) x 196.85"" (X) with one repositioning cycle. (Additional material support tables required when processing material over 100” in the X-axis)
Maximum Sheet Thickness 0.135"
Maximum Material Weight 154 lb.
Maximum Axis Travel 98.425" (X) by 50" (Y)
Max. Linear Table Speed (X / Y / Combined) 3934 ipm / 3149 ipm / 5039 ipm
Punching Accuracy ±0.0027"
Positioning Accuracy ±0.001"
Repeatability ±0.001"
Punching System Specifications

Press Capacity 33 Tons
Press Stroke 1.772"
Stroke Rate (X/Y) Pitch Stroke Stroke Rate
0.079" 0.236" 600/510
1.000" 0.236" 410/320
Maximum Hole Diameter 4.500"
Tool Type Amada Thick Turret
Turret Rotation Speed 33 RPM
Feed Clearance 0.984"
Auto Index Rotation Speed 60 RPM
