CINCINNATI MILLING MACHINE CO U5-1500 RAIL TYPEالمسوي نوع ميلز

بطاقة الهوية
435572
علامة تجارية
موديل
U5-1500 RAIL TYPE
الموقع
الولايات المتحدة الامريكية
رقم المخزن
26924

الوصف

Cincinnati MAAG U5-1500 CNC 5-Face Traveling Gantry, ATC, X-744",Y-144", 100" Under Cross Rail, 3000 RPM,Siemens 840D '07 #26924

المواصفات

تحويل المواصفات للمتري
ارتفاع أسفل القضيب
100.8 "
المسافة بين الجرابات
199 "
موتور
85 hp
RPM
3000 rpm
CNC تحكم
CNC (Siemens Sinumerik 840D CNC Control)

Reference #26924

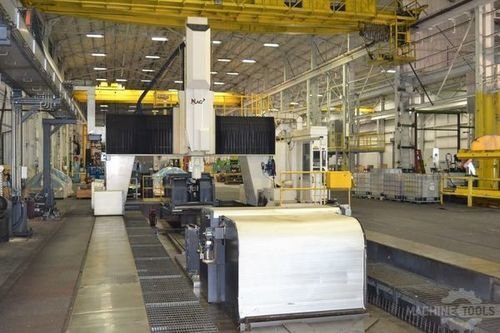

Cincinnati MAG U-5 CNC 5-Face Travelling Gantry Rail Type Milling Machine
Age 2007
Model: U5-1500 Rail Type

FEATURES:
Siemens Sinumerik 840D CNC Control
High Torque Vertical Milling Head
(2) 30-Station Automatic Tool Changers
Scales on Y & Z Axis

CAPACITY:
X-Axis, Longitudinal Gantry Travel .... 744"
Y-Axis, Head Travel ................... 144"
Z-Axis, Ram Vertical Travel ........... 60"
Distance Between Columns .............. 199"
Height Under Cross Rail ............... 100.8"
Vertical Head to Work Surface ......... 65.8"
Right Angle Head to Work Surface ...... 72.8"
Distance Across Ways .................. 213.2"
Length of Rails ....................... 864"
Work Zones ............................ 2

SPECIFICATIONS:
Ram Cross Section ..................... 20" X 20"
Spindle Speeds, Vertical Head ......... 40-3000 RPM
Spindle Speeds, Right Angle Head ..... 20-3000 RPM
Spindle Drive Motor, High Torque ...... 70 HP
Spindle Drive Motor, S6-60 ............ 85 HP
High Range Torque ..................... 442 Ft Lbs @ 187.5 RPM
Low Range Torque ...................... 1770 Ft Lbs @ 187.5 RPM
S6-60 ................................. 2348 Ft Lbs @ 187.5 RPM
Spindle Taper ......................... CAT 50
Spindle Rotation ...................... Prog. Bi-Directional
Speed Steps ........................... 1 RPM Increments
Automatic Speed Selection Ranges ...... 3000 RPM
Feed Rates: X, Y Axes ................. 600 IPM / 787 IPM
Feed Rates: Z-Axis .................... 500 IPM
Floor Space, Moving Width x Length .... 307" x 1066.3"
Overall Height ........................ 251.4"

EQUIPPED WITH:
Siemens Sinumerik 840D CNC Control
(2) 30 Position ATC (Floor Mounted)
Automatic Head Changer
High Torque Vertical Spindle Head
Scales on Y & Z Axis
Thru Spindle Coolant
Flood Coolant
2-Station Automatic Head Changer
5-Station Tool Rack
Renishaw RMP60 Spindle Probe System
Coolant & Chip Conveyor System
