TRUMPF TRUMATIC L3030قاطعات الليزر

بطاقة الهوية
435594
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1999
الموقع
المجر
رقم المخزن
HU-LAS-TRU-1999-00001

الوصف

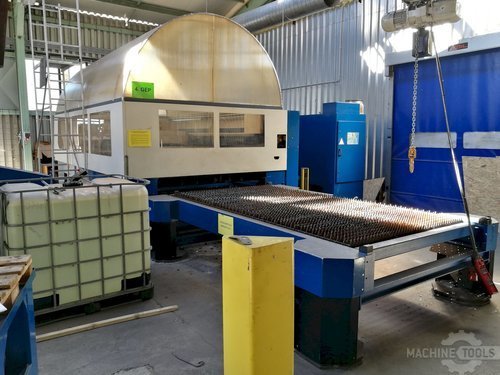

This Trumpf Trumatic L3030 Laser Cutting Machine was manufactured in 1999 in Germany and counts with a production time of 44290 laser hours and 23114 beam hours respectively. Equipped with a SIEMENS SINUMNERIK 840D Control unit, this machine has mainly worked with steel, stainless steel and aluminum sheets in the past.

المواصفات

تحويل المواصفات للمتري
ورقة-W
60 "
ورقة-L
120 "
وات
3000 w
بوصة فى الدقيقة IPM
3346 cmpm
حركة X
120 "
حركة Y
60 "
حركة Z
4.5 "

Trumpf Trumatic L3030 Laser Cutting Machine

Production Hours: 44290

General Data:
Measurements width: 9800 mm
Measurements depth: 5300 mm
Measurements height: 2000 mm
Machine weight: 11500 kg

Control Unit:
Brand: SIEMENS
Model: SINUMERIK 840D
CNC main language: English/ German

Main Drive:
Laser power: 4 kW
Laser brand: Trumpf

Movement:
X-Axis Movement: 3000 mm
Y-Axis Movement: 1500 mm
Z-Axis Movement: 115 mm

Max Material Thickness:
Steel: 20 mm
Stainless steel: 20 mm
Aluminium: 20 mm

Media:
Main electronic connection: 400 V / 50 Hz
Power consumption: 88 kVA
Internal cooling: Yes
