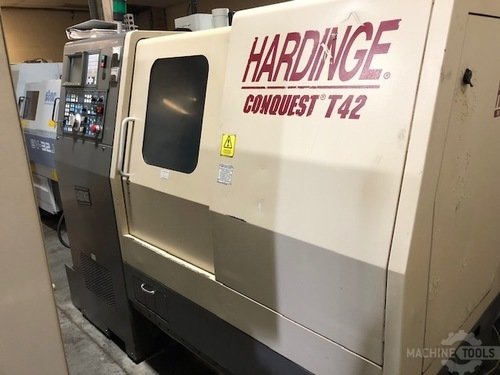

HARDINGE CONQUEST T42مخارط CNC

بطاقة الهوية
435697
علامة تجارية
موديل
النوع
السنة
1998
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157726
الثمن

الوصف

Hardinge Conquest T-42 CNC LATHE, Fanuc 18T, Live Tool, Subspindle, Chip Conv.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
6 "
سعة العامود
1.625 "
أكسات
2
القدرة
10 hp
ماكس RPM
5000 rpm
قطر الخراطة
9 "
الأرجحة
21.2 "
بالقطع طول
13.1 "
غراب
No

HARDINGE CONQUEST T-42 CNC TURNING CENTER

WITH LIVE TOOLING & SUB-SPINDLE

NEW: 1998



SPECIFICATIONS:

SPINDLE

SPINDLE CONFIGURATION (ANSI):                    A2-5", 16C

ROUND COLLET (THROUGH CAPACITY):                 1.625"

AC DIGITAL DRIVE SYSTEM

STANDARD:                                        15 HP

TORQUE RATING:                                   51.5 FT-LB

SPEED RANGE (1-RPM STEPS):                       60 TO 6000

CARRIAGE AND CROSS SLIDE

SWING DIAMETER OVER UPPER WAY COVER:             21.2"

PRELOADED BALL SCREW DIAMETER:                   1.259"

X-AXIS TRAVEL (MAX.):                            5.31"

X-AXIS RAPID TRAVERSE RATE:                      472 IPM

Z-AXIS RAPID TRAVERSE RATE:                      630 IPM

Z-AXIS (DRILLING) THRUST (MAX.):                 1,500 LBS

VERTICAL TURRET LIVE TOOLING OPTION

NO. OF STATIONS:                                 12 (6 LIVE OPT.)

HORSEPOWER RATING (AT TOOL TIP):                 2.4 HP

TORQUE RATING (CONTINUOUS):                      52 IN-LB

SPEED RANGE (1-RPM STEPS):                       UP TO 4,000

SPINDLE ORIENT:                                  C-AXIS CONTOURING(.001 DEGREE INCREMENTS)

SUB-SPINDLE

SPINDLE CONFIGURATION (ANSI):                    A2-5"

ROUND 16C COLLET (THRU CAPACITY):                1.625"

MAX. ALLOWABLE WEIGHT ON SPINDLE

(INCLUDING WORKHOLDING DEVICE):                  75 LB

MAX. DISTANCE FROM SPINDLE FACE TO

SPINDLE FACE:                                    13.270"

MAX. SQUARE SHANK TOOL SIZE ON

VERTICAL TURRET:                                 ¾"

MAX. ROUND SHANK TOOL SIZE ON

VERTICAL TURRET:                                 ¾"

MAX. DEPTH OF WORKPIECE INSIDE SPINDLE

(FROM SPINDLE FACE):                             14"

AC DRIVE SYSTEM (30 MIN RATING):                 5 HP

TORQUE RATING @ 1500 RPM BASE SPEED:             17.5 FT-LB

SPEED RANGE (1 RPM STEPS):                       80 TO 6000 RPM

ELECTRICS: 220 VOLTS, 3 PH, 60 CYC



EQUIPPED WITH:

  - FANUC 18T CNC CONTROL

  - 16C COLLET SETUP ON MAIN AND SUB

  - LIVE TOOLING

  - FULL C-AXIS

  - PARTS CATCHER

  - SUBSPINDLE

  - CHIP CONVEYOR

  - ALL AVAILABLE STANDARD & LIVE TOOLHOLDERS

  - ALL AVAILABLE MANUALS









FOR MORE INFORMATION: Call Mike at 973-497-7540
