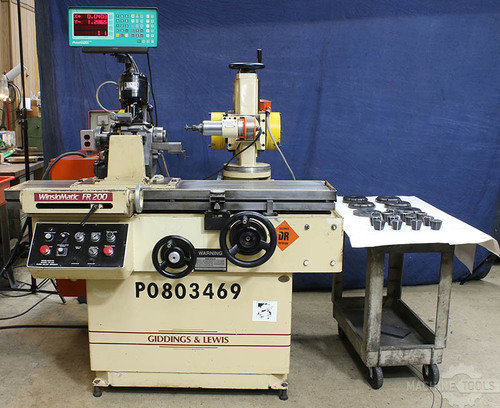

GIDDINGS & LEWIS WINSLOWMATIC FR-200 FORM RELIEVING GRINDERالمطاحن شكل

بطاقة الهوية
435818
علامة تجارية
موديل
WINSLOWMATIC FR-200 FORM RELIEVING GRINDER
السنة
1992
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157853
صور ( 10 ) / فيديو
بطاقة الهوية
435818
علامة تجارية
موديل
WINSLOWMATIC FR-200 FORM RELIEVING GRINDER
السنة
1992
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157853

الوصف

Giddings & Lewis Winslowmatic FR-200 FORM RELIEVING GRINDER TOOL & CUTTER GRINDER, 2-Ax DRO, Dual Hd, Coolant, PRECISE I.D. SPDL.

المواصفات

تحويل المواصفات للمتري
الجدول-W
14 "
الجدول-L
60 "

GIDDINGS & LEWIS (WINSLOW ENGINEERING) FORM RELIEVING GRINDER  MODEL: FR-200      S/N: 946-0080-92      NEW: 1992  IDEAL FOR ALL THESE TYPES OF TOOLS: -SUBLAND, STEP & CENTER DRILLS -COUNTERSINK, SPOTFACE, PORTING & TREPANNING TOOLS -TAPS, REAMERS, PUNCH INSERTS & FORM TOOLS CAM-GENERATED MOTION & ROTATION OF THE TOOL ASSURES CONCENTRIC CUTTING SURFACES  GRINDS TOOLS WITH 1 THRU 18 FLUTES PLATEN TABLE SIZE ................................... 14" X 60" PLATEN TABLE TRAVEL ................................. 26" CROSS SLIDE HANDWHEEL, GRADUATED TO ................. 0.0005" GRINDER SPINDLE VERTICAL TRAVEL ..................... 7-1/2" GRINDING SPINDLE, MAX. HEIGHT ....................... 9- 1/4" GRINDING SPINDLE TILTS .............................. +/- 25 DEG. GRINDER SPINDLE SWIVELS . ........................... 360 DEGREES RELIEVING FIXTURE, AXIAL RELIEF ..................... 0 TO 0.250" RADIAL RELIEF ....................................... 0 TO 0.100"  APPROX. FLOOR SPACE ................................. 86" x 60" APPROX. MACHINE WEIGHT .............................. 3,200 LBS.  EQUIPPED WITH: "PATHFINDER" 2-AXIS DIGITAL READOUT DISPLAY MOTORIZED RELIEVING FIXTURE W/INFINITELY VARIABLE  SPEED PROVIDED BY SCR DRIVE.  WORKHEAD SPINDLE IS THE OPTIONAL  "#33 TAPER, ALLOWING FOR COLLETS UP TO 1- 1/2" DIAMTER CAPACITY. THE COLLETS ARE THE "JACOBS RUBBERFLEX TYPE".  WE WILL PROVIDE  A SELECTION OF THESE COLLETS WITH THE MACHINE."PRECISE" HIGH SPEED INTERNAL GRINDING SPINDLE WITH INDEPENDENT ELECTRONIC VARIABLE SPEED SPINDLE CONTROLLER. I.D. SPINDLE IS MOUNTED ON VERTICAL COLUMN BEHIND THE O.D. WHEELHEAD. (6) CAMS WITH INDEX PLATES MACHINE FEATURES: TABLE SLIDES FREELY ON HARDENED ROUND WAYS & PRECISION  BALL BUSHINGS FOR EASY OPERATION& LONG LIFE. HANDWHEEL  IS OPERATED THROUGH A TWO-SPEED GEARBOX. COARSE FEED OF  3- 1/2" PER HANDWHEEL REVOLUTION. FINE FEED IS .134"  PER HANDWHEEL REVOLUTION. SPINDLE ASSEMBLY IS MOUNTED ON A FRICTION FREE ROLLER BEARING "X"& "Y" AXIS TABLE BASE. "POPE" GRINDING WHEEL SPINDLE, 1 H.P. /3/60/230-460 VOLTS MACHINE IS PRESENTLY WIRED FOR 460 VOLTS  SPECIAL NOTE: G & L SOLD THE COMPLETE "WINSLOW" PRODUCT LINE IN 2001 TO FORMER WINSLOW ENGINEERS. THEY HAVE NAMED THE COMPANY "WINSLOW ENGINEERING"& ARE LOCATED IN FOND DU LAC, WI. THE WEBSITE FOR THEIR INFORMATION ISwww.winsloweng.com   ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **  *** EXCEPTIONAL CONDITION & APPEARANCE ***

FOR MORE INFORMATION: Call Andy at 973-497-7600
