Serial No. 2J1-1074 Age: 2010
Diameter Range .120" - .79"
Maximum Workpiece and Fixture Weight 250 lbs
Work Area Envelope (Table) 6.88" x 6.88" x 5.9"
Carriage Travel 24.8"
Stroker Speed 2 - 2000 IPM
Reciprocation Rate (Stroke) 10 - 400 SPM
Servo Stroker Motor 10 HP
Spindle Speeds 50 - 4000 RPM
Servo Spindle Motor 2 HP
Presently Wired For 3/60/460V

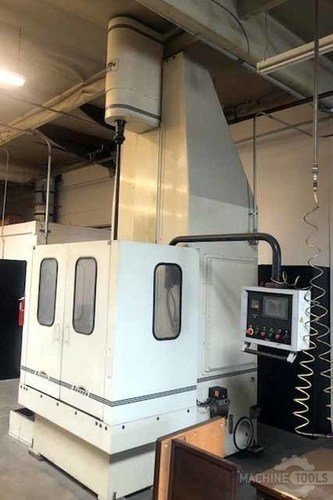

Sunnen Proface Xycom Windows Based PC Touch Screen Controller. 10-Position Rotary Bi-Directional Index Table (Infinitely Adjustable Servo Driven). 3-Honing Spindles. Hommel-Etamic In-Process Gauging. 2 HP Servo Spindles For Torque Sensitive Applications. Increased Sensitivity Feed System That Can Operate In Constant Rate Or Pressure Mode. Ball Screw Stroke Control Allows Machine To Short Stroke Or Dwell In Any Part Of The Bore. Synchronized Servo Stroke And Spindle Maintain Constant Crosshatch Finish Throughout The Bore From End To End. 12-Station Rotary Air Union. Windows Based PC Touchscreen Control With The Servo Column Feed Provides Optimum Process Control With Ease Of Set-Up. Spindle Speed And Column Speed Can Be Varied As Needed. Operations Such A Pecking, Short Stroke And Dwell Can Easily Be Added To Set-Up. Multiple Setups Can Be Entered And Saved For Future Production Runs. Coolant System. Manuals and Drawings. Sequence of Operation: Station #1: Load Station #2: Locating Station #3: Hone "A" Station #4: Gaging "A" Station #5: Hone "B" Station #6: Gaging "B" Station #7: Deburring Station #8: Hone "C" Station #9: Gaging "C" Station #10: Blow-Off
