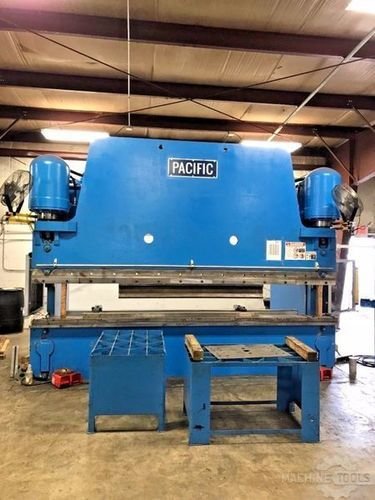

PACIFIC K400-14الصحافة الفرامل

بطاقة الهوية
436196
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2017
الموقع
Missouri
الولايات المتحدة الامريكية
عودة السياسة
كما هو
الثمن

الوصف

This machine is currently under power and available for inspection!

المواصفات

تحويل المواصفات للمتري
حمولة
400 T
نوع
HYD
طول كلى
16 '
بين مساكن
12.45 '
المشوار
12 "

This press brake was a complete rebuild by Pacific in 2017. Exact Details of the Rebuild can be provided by Pacific.

Maximum Capacity, Tons
Forming: 400
Punching: 266
Ram and Bed Length: Feet 14’
Distance Between Housings: Feet/Inch 12’5”
Platen Width: Inch 10”
1Platen Height Above Floor: Inch 32”
Throat Depth: Inch 10”
Throat Height: Inch 15”
Stroke, Maximum (Fully Variable): Inch 12”
Open Height, Maximum (Fully Variable): Inch 20”
Closed Height, Minimum (Fully Variable): Inch 8”
Ram Speeds (Inches Per Minute)
Rapid Advance (approach): 146
Normal Press: 26
Anti-Whip: 13
Fast Return: 146
Motor Horsepower: 30

Machine voltage can be ordered in one of the following configurations:  230/3/60, 460/3/60, 208/3/60, 575/3/60, and 380/3/50 (50 hertz systems will operate at 80% of advertised speeds). Voltage must be specified on purchase order.

Approximate Dimensions: Inch (Excluding Options)
Overall Height Above Floor: 117”
Width (Front to Back): 65”
Bed Projection Below Floor: 33”
Weight, lbs. (Approximate, Excluding Options): 45,000
