AKYAPAK APK 50الشواذ شكل

بطاقة الهوية
436520
علامة تجارية
موديل
حالة
مستعملة - جيد
الموقع
Oregon
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
8778CCM

الوصف

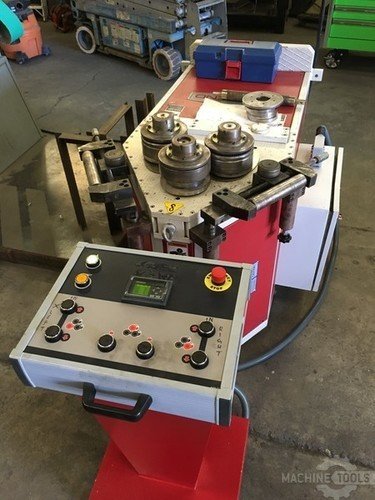

Hydraulic Section Bending Machine STANDARD EXECUTION: Machine frame is high strength (ST-52 grade) steel construction; Shafts made of special steel (42CrMo4), hardened and ground smooth; One set standard rolls included for angle**, flat bar, T shapes, and solid rounds; Lower rolls hydraulically adjusted up and down; Digital display showing the position of the lower rolls; Control panel on rolling console; Guide rolls are manually adjustable in/out of the machine frame; Manual lubrication; Horizontal and vertical working capability; Electrics for 3/60/220V or 3/60/460V; Emergency stop button on rolling console; Hydraulic oil, tool kit, instruction manual TECHNICAL DATA: Capacities in carbon steel Type A-36: Angle Iron - Leg Out** 2" x 2" x 3/16" to 24" ID; Angle Iron - Leg In** 1-3/4" x 1-3/4" x 3/16" to 24" ID; Flat Bar - On Flat 3" x 5/8" to 24" ID; Flat Bar - On Edge 1/2" x 2" to 32" ID; Square Bar* 1-1/4" to 28" ID; Round Bar* 1-3/8" to 32" ID; Hollow Tube/Pipe* 1-1/2" to 40" ID; Channel* 3" to 48" ID; Diameter of the rolls 6.38"; Rolling speed 7' /min; Motor Size 3 HP; Net Weight Approximate 1,100 Lbs. (*Requires Optional Tooling) (**Requires Optional Guide Rolls); Equipped with: Set of Guide Rolls for Rolling Angle

المواصفات

الوزن
1100 LBS

Wired for 3/60/220v or 3/60/460v
