OKUMA LU-15MWمخارط CNC

بطاقة الهوية
436571
علامة تجارية
موديل
النوع
السنة
1997
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157875
الثمن

الوصف

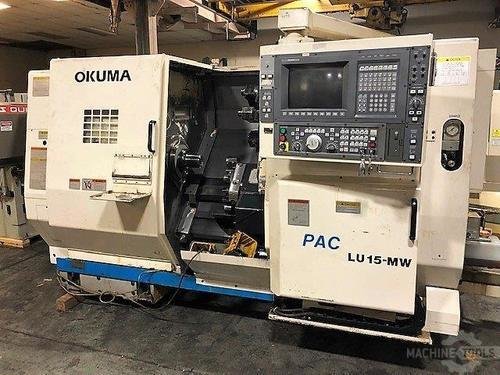

20.87" Swing 34.45" Centers Okuma LU-15MW CNC LATHE, OSP 7000L, Live Tool, Subspndle

المواصفات

OKUMA LU-15II/MW 5- AXIS CNC TURN/MILL CENTER

NEW: 1997



SPECIFICATIONS:

NUMBER OF CONTROLLED AXES .......... 5

SWING OVER BED ..................... 20.87"

SWING OVER CROSS SLIDE ............. 14.96"

DISTANCE BETWEEN SPINDLE NOSES ..... 34.45"

MAXIMUM TURNING DIAMETER ........... 14.17"

X-AXIS TRAVEL, UPPER ............... 10.24"

X-AXIS TRAVEL, LOWER ............... 5.51"

Z-AXIS TRAVEL, UPPER ............... 25.20"

Z-AXIS TRAVEL, LOWER ............... 24.41"

W-AXIS, SUBSPINDLE ................. 24.21"

SPINDLE SPEED RANGE, MAIN .......... 75-4500 RPM

SPINDLE SPEED RANGE, SUB ........... 50-4500 RPM

SPINDLE NOSE, MAIN ................. A2-6

SPINSLE NOSE, SUB .................. 5.51" Flat

SPINDLE BORE, MAIN ................. 2.44"

SPINDLE BORE, SUB .................. 2.08"

C-AXIS INDEXING .................... 0.001 Deg.

TURRET TYPE, UPPER ................. V12 VDI

ROTARY TOOL POSITIONS .............. ALL STATIONS

OD TOOL SIZE ....................... 1" X 1"

MAX. ID BAR ........................ 1.5"

TURRET TYPE, LOWER ................. V8

OD TOOL SIZE ....................... 1" X 1"

MAX. ID BAR ........................ 1.5"

RAPID TRAVERSE X/Z/W/C ............. 590/787/630/200 IPM

ROTARY TOOL SPEED RANGE ............ 45-4500 RPM

SHANK SIZE ......................... 40mm VDI

COLLET TYPE/ COLLET CAPACITY ....... ER32/20mm

SPINDLE DRIVE MOTOR, MAIN .......... VAC 30/20HP

SPINDLE DRIVE MOTOR, SUB ........... VAC 10/7.4HP

ROTARY TOOL DRIVE MOTOR ............ VAC 5/3 HP

APPROX. MACHINE WEIGHT ............. 12,500 LBS



EQUIPPED WITH:

 - OSP 7000L CONTROL W/IGF

 - ATS 3J HYDRAULIC COLLET CHUCK, MAIN

 - 6" 3-JAW KITAGAWA HYDRAULIC CHUCK, SUB

 - 12 STATION UPPER TURRET, V12

 - 8 STATION LOWER TURRET, V8

 - (4) LIVE TOOL HOLDERS

 - ALL AVAILABLE STATIC TOOL HOLDERS

 - CHIP CONVEYOR

 - LNS QUICKLOAD SHORT MAGAZINE BAR FEED



INSPECT UNDER POWER IN OUR HARRISON, NEW JERSEY WAREHOUSE





FOR MORE INFORMATION: Call Mike at 973-497-7540
