SUPERTEC G38P-60NCالمطاحن الأسطوانية العالمي

بطاقة الهوية
436573
علامة تجارية
موديل
السنة
2012
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157893
صور ( 10 ) / فيديو

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على SUPERTEC G38P-60NC ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
436573
علامة تجارية
موديل
السنة
2012
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157893

الوصف

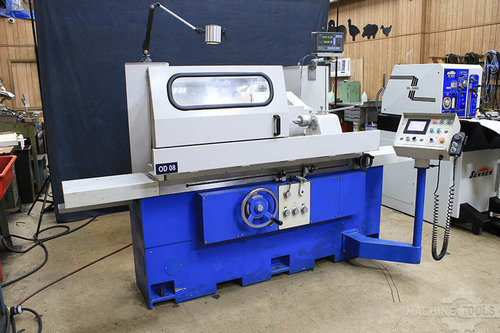

15" Swing 24" Centers Supertec G-38P-60NC OD GRINDER, PROGRAMMABLE AUTO INFEED, AUTO CYCLE

المواصفات

تحويل المواصفات للمتري
الأرجحة
15 "
المراكز
24 "
أقصى وزن بين المراكز
330 lb

15" x 24" SUPERTEC UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER ** Capable of Adding a Swing Down I.D. Grinding Attachment from the OEM ** MODEL G38P-60NC w/"Mitsubishi" PLC Automatic Infeed Control S/N: GD12018     NEW:  2012  SPECIFICATIONS:GENERAL CAPACITYDistance Between Centers: 24" Swing Over Table: 15" Max. Grinding Diameter: 14"Max. Load Held Between Centers: 330 lbs WHEELHEADHand feed travel: 7.8"Auto incremental infeed (NC) 0.0001" ~ 0.0999"Handwheel per division: 0.0002" Handwheel per revolution: 0.08" Infeed travel: 9.6"Top slide sliding travel: 7"Swiveling angle (R&L): 30Automatic rapid travel: 1.75" GRINDING WHEEL16" x 2" x 5" Diameter Grinding Wheel Wheel speed: 1650 rpm TABLESwivelling angle (R&L): 7Traverse speed (infi variable): 1.2"~275"/minHandwheel per revolution: 0.39" WORKHEADSwiveling angle (R&L): 90Center taper: with option MT5Spindle speed (infi variable): 30~350 rpm TAILSTOCKCenter taper: option MT5Quill travel: 1"  INTERNAL GRINDING SPINDLESpindle speed:G32P/G38P 12000/18000 rpm or 25000 rpm Max. grinding bore: 4.33" or 2.17"Max. chucking length: 8"~12.4" Max. chucking diameter: 6" MOTORWheel spindle motor: 10 H.P. Workhead motor: 2HP(4P)Hydraulic pump: 2HP(4P)Coolant pump: .25HP(2P)Internal grinding motor: 2HP(2P) MACHINENet weight: 10340 lbs Gross weight: 11220 lbsPacking dimension: 119"x90"x79"(L x W x H) Standard Features: - Mitsubishi PLC control uses a menu-driven LCD touch screen - itis easy to learn and easy to set-up. Simply fill in the blanks to setthe total grinding amount, rough increment, fine increment, spark-out passes, feeding direction, parking position, and retractingclearance - then press cycle start to complete an automatic grinding cycle. - Heavily ribbed box-type base is made of Meehanite castings, providing excellent rigidity to ensure machine stability.  - Hydraulics, coolant and lubrication systems are separated from machine to eliminate vibration and dissipate heat.  - Sturdy rigid-designed workhead is electronically controlled giving variable spindle speeds ranging from 30-350RPM.  Workhead swivels 90CCW to 90CW for various grinding operations. - A dual oil seal and cover prevents coolant seepage into the workhead. - The design of the tailstock is both rigid and robust. Housed in a cast body, the hardened nitralloy steel sleeve is designed to carry a MT4 center.  - Cartridge type wheel spindle is equipped with four super precision class 7 (ABEC) bearings incorporated with 7 1/2 HP spindle motor ensure high accuracy.  - One V and one flat hand-scraped guideways are Turcite coated and incorporated with an automatic lubrication system and micro-stepping motor. Smooth movement of the wheelhead delivers longer way life with superior positioning accuracy and repeatability.  - A special upper slide design adds 7" (180mm) in total wheelhead travel and increases grinding capacity. - Rigid table with box-type structure travels on a cushion of oil with no metal-to-metal contact.Table is fully supported in the full travel to avoid overhang.  - A swiveling table dial indicator enables rapid cylindricity corrections and taper grinding applications. - Slideways, leadscrews are continuously lubricated by an auto-lube system to ensure long service life and maintain maximum accuracy. Equipped With:- No. 5MT Workhead & Tailstock Spindle Tapers Option- Auto lube system - Coolant system with Paper Filtration- Mitutoyo "KA Counter" 2X DRO, Presently the Machine has 1 Glass Scale, for   the Infeed of the Wheelhead Movement- Wired Presently for 220 Volts Special Note:This is a Current Model Machine.  If you desire a Swing Down I.D Grinding Attchment with I.D. Grinding Spindle, we can provide a New Unit from Supertec.   12,000/18,000/25,000 RPM I.D. Spindles can be selected. ** Exceptional Condition & Appearance - 2012 Vintage Machine!! **** Inspect Under Power in our Harrison, N.J. Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
