CORREA A-30/40سرير مطاحن نوع

بطاقة الهوية
436642
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2000
الموقع
اسبانيا
رقم المخزن
ES-MIL-COR-2000-00001

الوصف

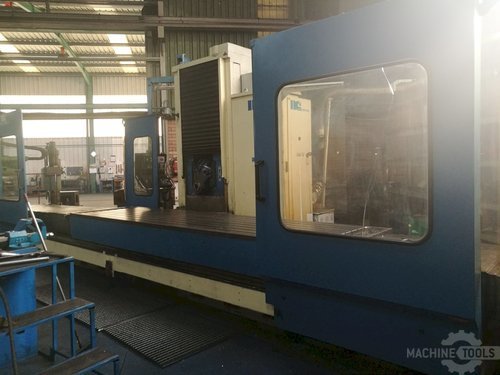

This Correa A30/40 Milling Machine was manufactured in Spain in 2000 and has a total working time of 59960 production hours. Operated through a Heidenhain TNC 430 Control unit, this machine counts with a spindle speed up to 3000 rpm. It presents very good conditions, as its main head has been rectified and the spindle balls changed.

المواصفات

تحويل المواصفات للمتري
الجدول-W
43.31 "
الجدول-L
177.2 "
مجال الحركة الطولية
157.5 "
مجال الحركة القطعية
47.24 "
القدرة
29.5 hp
RPM
2000 rpm
انحناء
ISO 50

Correa A30/40 Milling Machine

Production Hours: 59960

General Data:
Measurements width: 10150 mm
Measurements depth: 4664 mm
Measurements height: 3320 mm
Machine weight: 22500 kg

Control Unit:
Brand: Heidenhain
Model: TNC 430
CNC main language: Spanish
CNC language customizable: Yes

Main Drive:
Number of spindles: 1
Spindle speed range: 20-3000 rpm

Movement:
X-Axis Movement: 4000 mm
Y-Axis Movement: 1200 mm
Z-Axis Movement: 1500 mm

Workpiece:
Workpiece X: 4500 mm
Workpiece Y: 1200 mm
Workpiece Z: 1500 mm
Workpiece weight: 9000 kg

Table:
Outer length: 4500 mm
Outer width: 1100 mm
Number of tslots: 8
Distance between: 125 mm

Media:
Main electronic connection: 400 V / 50 Hz
