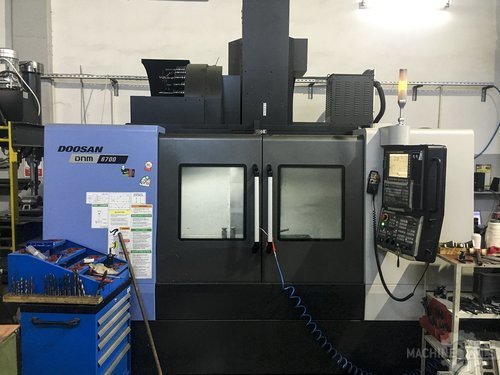

DOOSAN DNM 6700مراكز التجهيز العمودي

بطاقة الهوية
436644
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2017
الموقع
تركيا
رقم المخزن
TR-MIL-DOO-2017-00001

الوصف

This Doosan DNM 6700 Vertical Machining Center from 2017 was fabricated in South Korea and has an overall production time of only 947 working hours. Operated thorugh a FANUC iSeries Control unit, this highly reliable and flexible model with big table and direct drive spindle is in perfect condition with little working hours.

المواصفات

تحويل المواصفات للمتري
X
51.18 "
Y
26.38 "
Z
24.61 "
الجدول-W
26.38 "
الجدول-L
59.06 "
أكسات
3

Doosan DNM 6700 Vertical Machining Center

Production Hours: 947

General Data:
Measurements width: 2597 mm
Measurements depth: 3350 mm
Measurements height: 3120 mm
Machine weight: 8500 kg

Control Unit:
Brand: FANUC
Model: i Series
CNC main language: English
CNC language customizable: Yes

Main Drive:
Number of spindles: 1
Spindle speed range: 12000 1/min

Movement:
X-Axis Movement: 1300 mm
Y-Axis Movement: 670 mm
Z-Axis Movement: 625 mm

Workpiece:
Workpiece weight: 1300 kg

Table:
Outer length: 1500 mm
Outer width: 670 mm

Tools:
Slots in storage: 30
Max weight: 8 kg
Max tool length: 300 mm
Type of tool holder: BT40

Media:
Main electronic connection: 220 V
Power consumption: 33 kVA
Chip conveyor: Yes
Internal cooling: Yes
