CORREA CF-22/25سرير مطاحن نوع

بطاقة الهوية
436646
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2000
الموقع
اسبانيا
رقم المخزن
ES-MIL-COR-2000-00002

الوصف

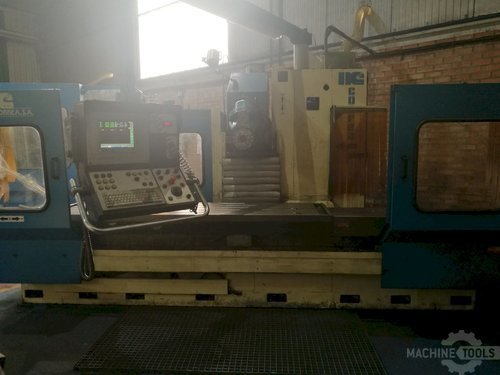

This Correa CF 22/25 Milling Machine was made in 2000 in Spain and has been operative for 36170 production hours. Equipped with a Selca S3045D Control unit, this machine counts with a working table of 2500 x 700 mm. It stands out for having its head bearings changed and for incorporating an encoder, ready for 4 axis.

المواصفات

تحويل المواصفات للمتري
الجدول-W
27.5 "
الجدول-L
98.2 "
أكسات
3
مجال الحركة الطولية
98.2 "
مجال الحركة القطعية
31.4 "
القدرة
22 hp
RPM
2500 rpm

Correa CF 22/25 Milling Machine

Production Hours: 36170

General Data:
Measurements width: 6400 mm
Measurements depth: 2900 mm
Measurements height: 2760 mm
Machine weight: 9500 kg

Control Unit:
Brand: Selca
Model: S3045D
CNC main language: Spanish

Main Drive:
Number of spindles: 1
Spindle speed range: 605-4000 rpm

Movement:
X-Axis Movement: 2500 mm
Y-Axis Movement: 800 mm
Z-Axis Movement: 800 mm

Workpiece:
Workpiece X: 2500 mm
Workpiece Y: 800 mm
Workpiece Z: 800 mm
Workpiece weight: 4000 kg

Table:
Outer length: 2500 mm
Outer width: 700 mm
Number of tslots: 5
Distance between: 125 mm

Media:
Main electronic connection: 400 V / 50 Hz
