CINCINNATI MILLING MACHINE CO U5-1500 RAIL TYPEالمسوي نوع ميلز

صور ( 10 ) / فيديو

علامة تجارية
موديل
U5-1500 RAIL TYPE
بطاقة الهوية
436847
السنة
2007
الموقع
الولايات المتحدة الامريكية
رقم المخزن
29389
بطاقة الهوية
436847
علامة تجارية
موديل
U5-1500 RAIL TYPE
السنة
2007
الموقع
الولايات المتحدة الامريكية
رقم المخزن
29389

الوصف

Cincinnati U5-1500 CNC Gantry Mill, Siemens 840D, X-1152", Y-144", Z-60", 63 ATC, 6,000 RPM 5-Axis Gimbal Head, '07 #29389

المواصفات

تحويل المواصفات للمتري
الجدول-W
120 "
الجدول-L
72 "
المسافة بين الجرابات
199 "
RPM
6000 rpm
CNC تحكم
CNC (Siemens Sinumerik 840D CNC Control)

Reference #29389

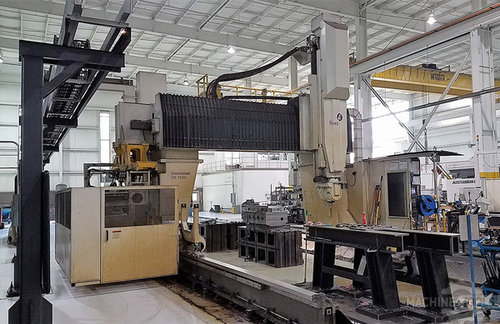

Cincinnati MAG U5-1500 CNC Travelling Gantry Rail Type Milling Machine
Age 2007
Model: U5-1500 Rail Type

FEATURES:
Siemens Sinumerik 840D CNC Control
6,000 RPM 5-Axis Gimbal Head
6,000 RPM Right Angle Head
63-Station Automatic Tool Changer

CAPACITY:
X-Axis, Longitudinal Gantry Travel .... 1152"
Y-Axis, Head Travel ................... 144"
Z-Axis, Ram Vertical Travel ........... 60"
Distance Between Columns .............. 199"
Distance Across Ways .................. 213.2"
Length of Rails ....................... 1296"
Number of Workplates .................. 16
Workplate Size ........................ 120" x 72"
Overall Workplate Length .............. 1184.1"
Workplate Width (Each) ................ 120"
Overall Working Surface ............... 120" x 1184.1"

SPECIFICATIONS:
Ram Cross Section ..................... 20" X 20"
Spindle Speeds, Vertical Head ......... To 6000 RPM
Spindle Speeds, Right Angle Head ..... To 6000 RPM
Spindle Drive Motor ...................
Spindle Taper ......................... CAT 50
Spindle Rotation ...................... Programmable Bi-Directional
Speed Steps ........................... 1 RPM Increments

5-AXIS GIMBAL HEAD:
Spindle Taper ......................... No. 50 Big Plus
Spindle Speeds ........................ 6000 RPM
A-Axis ................................ +100 Degrees/-90 Degrees
C-Axis ................................ 360 Degrees
Power ................................. 40 HP (Continuous Duty)
Distance, Ram Face to Pivot Point...... 18.78"

EQUIPPED WITH:
Siemens Sinumerik 840D CNC Control
63 Station Automatic Tool Changer
3 Station Head Stand
(2) 5-Positiion Wine Racks
6,000 RPM Vertical Head, Big Plus
6,000 RPM Right Angle Head, Big Plus
6,000 RPM 5-Axis Gimbal Head
Hinge Belt Type Coolant and Chip System (X and Y Axis)
Thru Spindle Coolant
Flood Coolant
5-Station Tool Rack
Spindle Probe System
Coolant & Chip Conveyor System

Overall Floor Space, L x W x H (Approx)........ 1296" x 390.1" x 294.4"

NOTE:
Inspect Under Power
