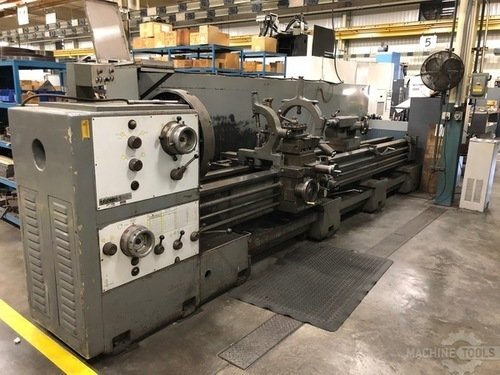

SUMMIT 30” x 160” GAP BED ENGINE LATHE
S/N 7408203
Year: 1976
Specifications:
Swing Over Bed Ways: ………………………….. 30”
Swing Over Cross Slide: ………………………… 22”
Swing in Removable Gap: ………………………. 39-1/4”
Distance Between Centers: …………………….... 120”
Spindle Bore: …………………………………….. 4-1/16”
Spindle Speeds: ………………………………….. 20 – 1500 RPM
Main Motor: ……………………………………... 15 HP (480/60/3)
Threading: …………………………………….…. Inch/MM
Machine Weight: ………………………………... 15,600 Lbs. Approx.
Included:
Manuals
Taper Turning Attachment
Coolant
Thread Dial
Tailstock
Backside Chip Guard
16” Steady Rest
12” Follow Rest
4-Way Tool Post
28” 4-Jaw Chuck
Chip Pans
THIS MACHINE IS OFFERED SUBJECT TO PRIOR SALE, SPECIFICATIONS SUBJECT TO CORRECTION, MACHINE SOLD AS IS CONDITION, AS INSPECTED AND/OR ACCEPTED, AND PAYMENT IN FULL PRIOR TO LOADING. CUSTOEMR IS RESPONSIBLE FOR LOADING MACHINE AND SHIPPING. RIGGING / SHIPPING QUOTE CAN BE PROVIDED.
Please contact Abbott Machine to discuss the above piece of equipment.
