AP&T LMB-12000-13-09مكابس هيدروليكية

صور ( 9 )

علامة تجارية
موديل
بطاقة الهوية
437204
حالة
مستعملة - جيد
السنة
1996
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
8803
بطاقة الهوية
437204
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1996
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
8803

الوصف

1200 Ton AP&T Blanking, Embossing and Cut-Off Line (Press available separately)

المواصفات

تحويل المواصفات للمتري
حمولة
1,200 T
المشوار
19.7 "
عرض الفراش
70 "
طول الفراش
51 "

1200 TON AP&T (LAGAN) BLANKING, EMBOSSING AND CUT OFF LINE

MODEL: LMB-12000-13-09

PRESS NO. 1

PRESS TYPE LMB-12000
PRESS FORCE, STEPLESS ADJUSTMENT: 1200 TON (12000 kN)
STROKE LENGTH, STEPLESS ADJUSTMENT: 0 - 19.7" (0 - 500 mm)
MAX. SHUT HEIGHT: 39" (1000 mm)
CLOSING SPEED: 1"/sec. - 9.6"/sec.
PRESSING SPEED: 0.12"/sec. - 1.2"/sec.
BED SIZE: 70.8" x 51" (1800 x 1300 mm)
FRAME OPENING L-R x F-B: 51" x 35" (1300 x 900 mm)
POWER SUPPLY: 460 V, 60 HZ, 500 A
APPROX. WEIGHT: 119,000 LBS.

PRESS NO. 2

PRESS TYPE MH4-1000-08-08
PRESS FORCE: 100 TON (1000 kN)
STROKE LENGTH: 7.9" (200 mm)
MAX. SHUT HEIGHT: 20" (500 mm)
BED SIZE: 42" x 42" (1070 x 1070 mm)
FRAME OPENING L-R x F-B: 31" x 31" (800 x 800 mm)
APPROX. WEIGHT: 11,900 LBS.

CUTOFF SHEAR TYPE AKS-500-40
SHEARING FORCE: 40 TON (400 kN)
MAXIMUM SHEARING WIDTH: 20" (500 mm)
APPROX. WEIGHT: 1,400 LBS.

PUMP UNIT:
PUMP CAPACITY (HP1): 95 G/MIN (360 l/MIN)
PUMP CAPACITY (HP2): 45 G/MIN (170 l/MIN)
EL MOTOR (M1): 115 HP (86 KW)
PUMP CAPACITY (HP3): 95 G/MIN (360 l/MIN)
PUMP CAPACITY (HP4): 17 G/MIN (65 l/MIN)
EL MOTOR (M2): 115 HP (86 KW)
PUMP CAPACITY (HP20): 74 G/MIN (280 l/MIN)
PUMP CAPACITY (HP30): 8 G/MIN (30 l/MIN)
EL MOTOR (M3): 10 HP (7.5 KW)
MAX. WORKING PRESSURE: 4,400 PSI (30.5 MPA)
CAPACITY OF HYDRAULIC OIL RESERVOIR: 581 GALLONS (220 LITER)

VOLTAGE: 460 V, 60 HZ.
ELECTRICITY SUPPLY: 500 AMP

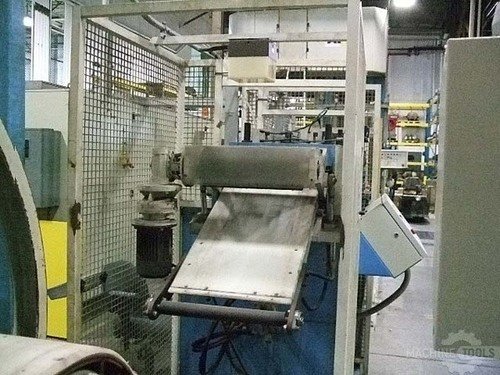

-STRIP STRAIGHTENER - TYPE RMA-60-500
COIL WIDTH: 20" (500 mm)
MAXIMUM THICKNESS: 0.118" STEEL
0.157" ALUM
NUMBER OF FEEDING-IN ROLLS: 2
NUMBER OF STRAIGHTENING ROLLS: 9
ROLL DIAMETER: 2.4" (62 mm)
DRIVING FORCE: ELECTRIC MOTOR
SPEED CONTROL: FREQUENCY CONVERTER,
0 - 33 FT/MIN (0 - 10 m/MIN)
LOOP CONTROL: MEASURING WHEEL

-SERVO ROLL FEEDER - TYPE AE 95-500
MAXIMUM COIL WIDTH: 20" (500 mm)
NUMBER OF ROLLS: 2
ROLL DIAMETER: 3.7" (95 mm)
DRIVING FORCE: ELECTRICAL SERVO
SPEED: 0 - 98 FT/MIN (0 - 30 m/MIN)
MAXIMUM THICKNESS: 0.118" STEEL
0.157" ALUM
ROLL PRESSURE: PNEUMATIC

-STACKING EQUIPMENT LS:
MODEL: AUTO ARM 604/S
SERIAL NUMBER: 2893
YEAR BUILT: 1995
HORIZONTAL STROKE: 27" (700 mm)
VERTICAL STROKE: 1.57" (40 mm)
CYCLE TIME: 2.4 SEC.
MATERIAL OF BLANK: ALUMINUM DISKS
SIZE OF WOODEN PALLET: 24" x 24" (610 x 610 mm)
MINIMUM DIAMETER OF DISK: 9.62" (244.5 mm)
MAXIMUM DIAMETER OF DISK: 16" (405.8 mm)
MAXIMUM THICKNESS OF DISK: 0.118" (3 mm)
MAXIMUM HEIGHT OF PACK: 20" (500 mm)
MAXIMUM TEMP OF BLANK: 40 DEG. C
INSTALLED POWER: 7 KVA
RATED VOLTAGE: 460 V
Nr. PHASES: 3 PHASE
FREQUENCY: 60 HZ.
RATED CURRENT: 9 AMPS
COMPRESSED AIR PRESSURE AT ENTRY: 87 PSI (6 BAR)
AIR CONSUMPTION: N1 / 1' 50
Note: Press Available Separately
