CHEVALIER ED-203ذاكرة الوصول العشوائي نوع الغطاس EDM

بطاقة الهوية
438242
علامة تجارية
موديل
رقم المسلسل
0001278
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
4357
الثمن

الوصف

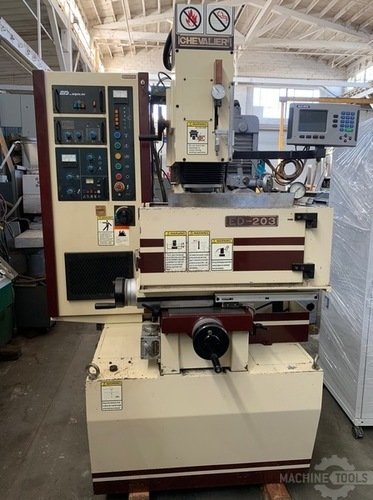

MAKE: CHEVALIER MDL: ED-203 S/N: 0001278 X-TRAVEL: 9-13/16" Y-TRAVEL: 5-7/8" MACHINE HEAD STROKE (W) AXIS: 5-7/8" QUILL STROKE (Z): 5-7/8" MAX. ELECTRODE LOAD: 88 LBS MAX. WORK PIECE WEIGHT: 660 LBS DIELECTRIC RESERVOIR: 116 GAL. MAX. PROCESS CURRENT: 20A MAX. POWER CONSUMPTION: 3 KVA MAX. WORKING SPEED (20A): 0.83"/HR & 2.6 OZ/HR WORK TANK DIMENSIONS: 26-3/4"L X 16-1/8"W, X 12"H WORK TABLE AREA: 19-11/16"L X 9-13/16"W DISTANCE TABLE TO PLATE: 3-15/16" X 17-11/16 WITH ACU-RITE DRO MACHINE DIMENSIONS: 55"L X 52"W, X 87"H APPOX WEIGHT: 2000 LBS PRICE: $3,500.00 ***SPECIFICATION SHOWN ARE TO BE USED AS A GUIDELINE ONLY. IT IS THE CUSTOMERS RESPONSIBILITY TO CHECK FOR SIZE AND FEATURES BEFORE PURCHASING WE WILL NOT BE RESPONSIBLE FOR ERROR OR OMISSIONS.

المواصفات

تحويل المواصفات للمتري
مجموعة القدرة
20 A
الأبعاد
55"L X 52"W, X 87"H
الوزن
2000

MAKE: CHEVALIER
MDL: ED-203
S/N: 0001278
X-TRAVEL: 9-13/16"
Y-TRAVEL: 5-7/8"
MACHINE HEAD STROKE (W) AXIS: 5-7/8"
QUILL STROKE (Z): 5-7/8"
MAX. ELECTRODE LOAD: 88 LBS
MAX. WORKPIECE WEIGHT: 660 LBS
DIELECTRIC RESERVOIR: 116 GAL.
MAX. PROCESS CURRENT: 20A
MAX. POWER CONSUMPTION: 3 KVA
MAX. WORKING SPEED (20A): 0.83"/HR & 2.6 OZ/HR
WORK TANK DIMENSIONS: 26-3/4"L X 16-1/8"W, X 12"H
WORK TABLE AREA: 19-11/16"L X 9-13/16"W
DISTANCE TABLE TO PLATE: 3-15/16" X 17-11/16
WITH ACU-RITE DRO

MACHINE DIMENSIONS: 55"L X 52"W, X 87"H
APPOX WEIGHT: 2000 LBS

PRICE: $9,500.00

***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMERS RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
