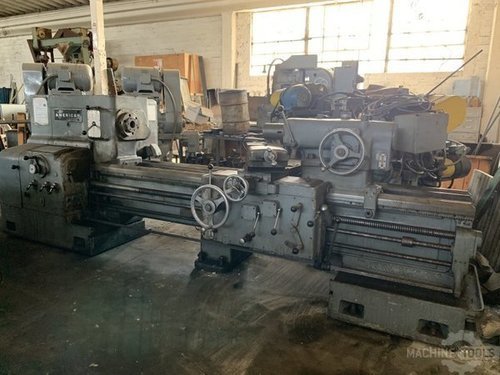

AMERICAN TOOL WORKS STYLE "F" 25X72مخارط المحرك

بطاقة الهوية
438247
علامة تجارية
موديل
رقم المسلسل
77951-66
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
4297
الثمن

الوصف

MAKE: AMERICAN MDL: STYLE "F" 25X72 S/N: 77951-66 YR: 1966 SWING: 30.5" CENTERS: 78" SPINDLE SPEEDS: 27 RANGE 18 TO 1200 RPM HOLE IN SPINDLE: 2-1/4" 66 THREAD 60-I TPI 132 FEEDS .0025 TO 1.00 SPINDLE NOSE: D1-8 MOTOR: 20HP (ORIGINAL EQUIP WAS 40HP) 220/440 DUAL VOLTS NO TAPER ATTACHMENT MISSING CHIP PANS CONDITION: EXCELLENT, WAYS ARE GOOD EQUIPPED WITH: 25" 4-JAW CHUCK 18" 3-JAW CHUCK RAPID TRAVERS THREAD DIAL ALORIS TOOL HOLDER & TOOLS DIMENSIONS: 17'L, X 8'W, X 5'H APPROX WEIGHT: 17,000 LBS LOCATION: SANTA PAULA, CA PRICE: $6,950.00 **SPECIFICATION SHOWN ARE TO BE USED AS A GUIDELINE ONLY. IT IS THE CUSTOMERS RESPONSIBILITY TO CHECK FOR SIZE AND FEATURES BEFORE PURCHASING WE WILL NOT BE RESPONSIBLE FOR ERRORS OR OMISSIONS.

المواصفات

تحويل المواصفات للمتري
الأرجحة
30 "
المراكز
78 "
القدرة
20 hp
RPM
1200 rpm
الأبعاد
17'L, X 8'W, X 5'H
الوزن
17000

MAKE: AMERICAN
MDL: STYLE "F" 25X72
S/N: 77951-66
YR: 1966
SWING: 30.5"
CENTERS: 78"
SPINDLE SPEEDS: 27 RANGE 18 TO 1200 RPM
HOLE IN SPINDLE: 2-1/4"
66 THREAD 60-I TPI
132 FEEDS .0025 TO 1.00
SPINDLE NOSE: D1-8
MOTOR: 20HP (ORIGINAL EQUIP WAS 40HP)
220/440 DUAL VOLTS

NO TAPER ATTACHMENT
MISSING CHIP PANS

CONDITION: EXCELLENT, WAYS ARE GOOD

EQUIPPED WITH:
25" 4-JAW CHUCK
18" 3-JAW CHUCK
RAPID TRAVERS
THREAD DIAL
ALORIS TOOL HOLDER & TOOLS

DIMENSIONS: 17'L, X 8'W, X 5'H
APPROX WEIGHT: 17,000 LBS

LOCATION: SANTA PAULA, CA

PRICE: $6,950.00

**SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMERS RESPONSIBLITY TO
CHECK FOR SIZE AND FEATURES
BEFORE PURCHASING WE WILL NOT
BE RESPONSIBLE FOR ERRORS OR
OMISSIONS.
