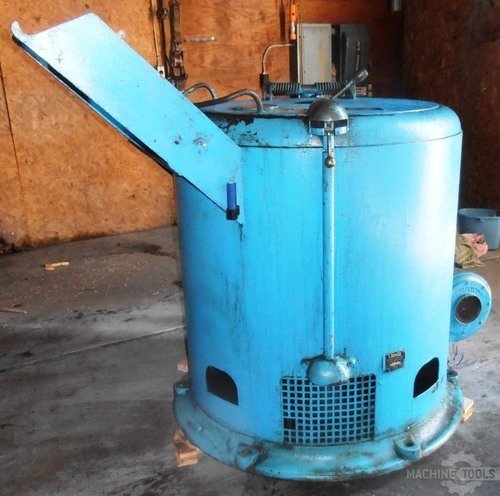

BARRETT MODEL 1100-SE OIL EXTRACTOR

NEW: 1984



SPECIFICATIONS:

CHIP PAN DIAMETER...................... 30"

CHIP PAN DEPTH......................... 14"

CHIP PAN CAPACITY (CUBIC FEET)......... 4.25

CHIP PAN CAPACITY (BUSHELS)............ 3.5

MAXIMUM LOADS PER HOUR................. 15

HOURLY PRODUCTION RATE (CUBIC FEET).... 63

HOURLY PRODUCTION RATE (BUSHELS)....... 52

55 GALLON DURMS........................ 8.5

MAX. ALLOWABLE LOAD (LBS).............. 425

RUNNING SPEED (RPM).................... 900 RPM

MOTOR HORSEPOWER....................... 10 HP

MACHINE HEIGHT (TOP CLOSED)............ 43.5"

MACHINE HEIGHT (TOP OPEN).............. 80"

DIAMETER OF MACHINE BASE............... 49"

WEIGHT (APPROX.)....................... 2500 LBS.



FOR MORE INFORMATION: Call Mike at 973-497-7540
