BRIDGEPORT SERIES IIمطاحن العمودي

بطاقة الهوية
438373
علامة تجارية
موديل
السنة
1978
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
155637
الثمن

الوصف

58" Table 4HP Spindle Bridgeport SERIES II VERTICAL MILL, Vari-Speed, #40 Taper

المواصفات

تحويل المواصفات للمتري
الجدول-W
11 "
الجدول-L
58 "
مجال الحركة الطولية
30 "
مجال الحركة القطعية
15 "
القدرة
4 hp
RPM
4500 rpm

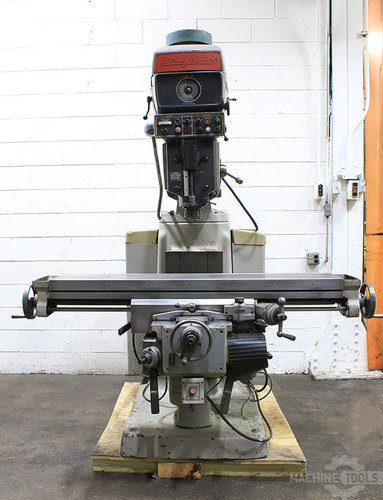

11" X 58" BRIDGEPORT VERTICAL MILL

MODEL: SERIES II, S/N: 1636, YEAR: 1978



SPECIFICATIONS:

WORKING SURFACE OF TABLE ................. 11" X 58"

RANGE:

- LONGITUDINAL ........................... 30"

- CROSS .................................. 15"

VERTICAL (KNEE) .......................... 16"

RAM TRAVEL ............................... 16"

MAXIMUM THROAT DISTANCE .................. 26-5/8"

MINIMUM THROAT DISTANCE .................. 10-5/8"

MAXIMUM TABLE LOAD CAPACITY .............. 1,500 LBS.

SPINDLE SPEEDS, TWO RANGES ............... 50 TO 450 RPM

INFINITELY VARIABLE ...................... 450 TO 3500 RPM

QUILL TRAVEL ............................. 5"

QUILL POWER FEED RANGE ................... .6 TO 2.5 IPM

FEEDS:

- LONGITUDINAL ........................... 3/8 TO 24 IPM

- CROSS .................................. 3/16 TO 12 IPM

RAPID TRAVERSE RATE:

- LONGITUDINAL AND CROSS ................. 24 IPM

- VERTICAL (KNEE) ........................ 12 IPM

TAPER IN SPINDLE ......................... #40 QUICK CHANGE

HEAD TILTS:

- LEFT TO RIGHT .......................... 90 DEG.

- FRONT TO BACK .......................... 30 DEG.

RAM SWIVELS .............................. 360 DEG.

APPROXIMATE WEIGHT ....................... 5,500 LBS.



EQUIPPED WITH:

- #40 QUICK CHANGE SWITCH SPINDLE

- FEEDS ON QUILL & KNEE & TABLE

- BOX CHROME WAYS ON SADDLE

- HARDENED AND GROUND TABLE SURFACE

- AUTOMATIC LUBRICATION SYSTEM



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE





FOR MORE INFORMATION: Call David at 973-497-7570
