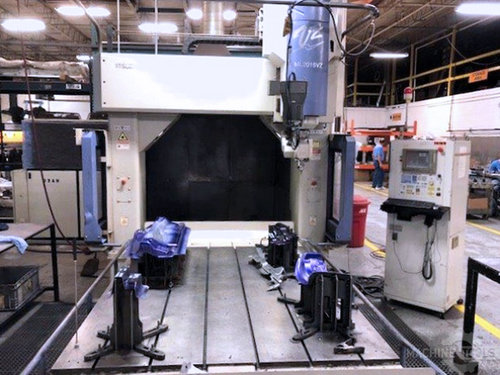

MITSUBISHI ML2015VZ1قاطعات الليزر

المواصفات
Specifications:
W Axis +/- 360 Degrees
U Axis s +/- 180 Degrees
H Axis ( Height Sensor) +/- .39”
Max Workpiece Size 80” x 60” x 24”
Max Workpiece Weight 2,090 Lbs
Max X,Y,Z Feed Rate 984 IPM
Max W,U Feed Rate 180 Degrees per Second
Table 60" x 84"
Table Pass Height 25.6”
Rapid Travel Speed (X,Y) 1378 IPM
Rapid Travel Speed (Z) 984 IPM
Rapid Travel Speed (W,U) 180 Degrees per Second
Machine Dimensions 139.5" W x 231.4" L x 143.7" H
Machine Weight 17,000 Lbs
3020D Resonator 3000 Peak, 2000 W Constant
Equipped With:
Mitsubishi LC20T Control,
Thermal Care Accu Chiller LX2,
1.44 MB Floppy Disk,
Hard Capacity 2.0 GB,
Graphic Display 10.4” TFT Color LED,
CPU/ 64 bit/ PC,
Rigid Machine design on Hybrid Frame,
Large Work Piece Capacity,
Zero Offset Processing Head,
+ 360 Degree W-Axis Stroke,
AC Smart Drive Servo System,
Quick Change Collimation Mirror
