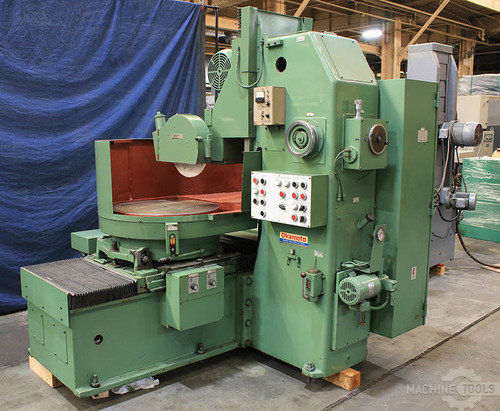

OKAMOTO PRG-6المطاحن سطح الدوارة

بطاقة الهوية
438720
علامة تجارية
موديل
السنة
1984
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157730

الوصف

24" Chuck 10HP Spindle Okamoto PRG-6, NEW 1984, ROTARY SURFACE GRINDER, AUTO IDF, AUTO CYCLE, COOLANT WITH FILTRATION

المواصفات

تحويل المواصفات للمتري
قطر الظرف
24 "
عامود الدوران (أفقى/رأسى
Horz
القدرة
10 hp
الأرجحة
28 "
أسفل العجلة
15 "
عرض عجلة التجليخ
1.5 "
قطر عجلة التجليخ
14 "

   OKAMOTO "PRECISION" (MADE IN JAPAN) ROTARY SURFACE GRINDER



MODEL: PRG-6     S/N: 1098      MFG.: 1984



DIAMETER OF MAGNETIC CHUCK........... 23.6"

MAX. SWING (COOLANT GUARD)........... 29.5"

MAX. HEIGHT, UNDER 14" WHEEL ........ 7.87"



STANDARD WHEEL SIZE.................. 14"DIA.

                                      1.5" TO 2""W

                                      5" BORE

GRINDING WHEEL MOTOR ................ 10 H.P.

AUTO SPINDLE DOWNFEED................ 0.0001"-.001"

RAPID FEED .......................... 11.2" IPM

HAND FEED PER REV. .................. 0.02"

ONE GRADUATION OF DIAL .............. 0.0001"



MAX. ANGLE (CONVEX/CONCAVE .......... 3 DEGREES

CHUCK SPEEDS, INF. VARIABLE ......... 20 TO 150 RPM

TABLE TRAVEL (MAX) .................. 15.7"

TABLE TRAVERSE RATE ................. 0-15 FPM



SPINDLE MOTOR ....................... 10 HP

HYDRAULIC SYSTEM MOTOR .............. 3 HP



APPROXIMATE MACHINE WEIGHT .......... 7,780 LBS.

MACHINE TOOL DIMS. .................. 86"L-R x 106"F-B x 79"H





EQUIPPED WITH:

AUTOMATIC GRINDING CYCLE WITH SPARKOUT TIMER

THE TABLE ON THE SADDLE MOVES LONGITUDINALLY ON THE WAYS

 OF THE BED

INFINITELY VARIABLE CHUCK SPEEDS, BY TURNING A DIAL

INFINITELY VARIABLE LONGITUDINAL SPEED SETTING,

 BY TURN OF A DIAL

23.6" DIAMETER "CONCENTRIC POLE" FINE-DIVISION

 ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTROFIER CONTROL FOR THE ELECTRO-MAGNETIC CHUCK

TABLE TILTS, PLUS/MINUS 3 DEGRESS OF CENTER

POWER RAPID TRAVERSE FOR WHEEL ELEVATION

COOLANT SYSTEM WITH PAPER FILTRATION

10 H.P. SPINDLE MOTOR, 3/60/220-440 VOLTS

MACHINE IS PRESENTLY WIRED FOR 220 VOLTS





** EXCEPTIONAL CONDITION & APPEARANCE - SERVICED, CLEANED & PAINTED, READY FOR DELIVERY **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **



FOR MORE INFORMATION: Call Andy at 973-497-7600
