MAKINO MC-100مراكز المعالجة الأفقي

بطاقة الهوية
438878
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1987
الموقع
كرواتيا
رقم المخزن
HR-MIL-MAK-1987-00001

الوصف

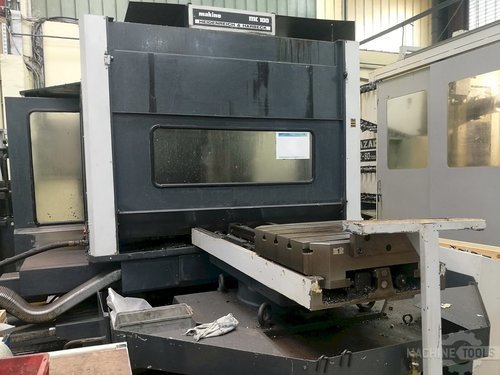

This Makino MC 100 Horizontal Machining Center was made in Germany in 1987 and counts with a production time of 62000 hours. Operated through a FANUC System 6M Control unit, this strong machine has mainly worked with steel and stainless steel during the past. It incorporates box guideways, an oil chiller and 2 pallets.

المواصفات

تحويل المواصفات للمتري
X
38.58 "
Y
31.5 "
Z
24.41 "
RPM
4000 rpm
# ATC
60
CNC تحكم
CNC (FANUC 6M)

Makino MC 100 Horizontal Machining Center

Production Hours: 62000

General Data:
Measurements width: 4900 mm
Measurements depth: 6800 mm
Measurements height: 2650 mm
Machine weight: 11000 kg

Control Unit:
Brand: FANUC
Model: System 6M
CNC main language: English
CNC language customizable: Yes

Main Drive:
Number of spindles: 1
Spindle speed range: 4000 rpm

Movement:
X-Axis Movement: 980 mm
Y-Axis Movement: 800 mm
Z-Axis Movement: 620 mm

Table:
Outer length: 630 mm
Outer width: 630 mm
Number of tslots: 5
Distance between: 125 mm

Tools:
Slots in storage: 60
Type of tool holder: SK50

Media:
Main electronic connection: 380 V
Power consumption: 15 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment:
* oil chiller
* 2 pallets (630x630mm)
