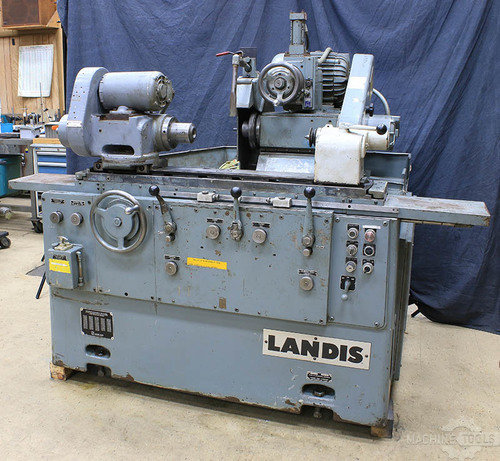

LANDIS 1Rالمطاحن الأسطوانية العالمي

بطاقة الهوية
439481
علامة تجارية
موديل
السنة
1982
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
158094

الوصف

10" Swing 20" Centers Landis 1R OD GRINDER, 16" WHEEL, HYD. TABLE, AUTO INFEED, PLUNGE, RAPID,

المواصفات

تحويل المواصفات للمتري
الأرجحة
10 "
المراكز
20 "
القدرة
3 hp
موتور رأس الشغلة
0.5 hp
سرعة عامو دوران رأس الشغلة
600 RPM
قطر عجلة التجليخ
12 "

10" X 20" LANDIS (MADE IN USA) "HIGH-PRECISION"

  UNIVERSAL CYLINDRICAL GRINDER



MODEL: 1R     S/N: 884-4      NEW: 1982



NOMINAL SWING OVER TABLE .......................... 10"

MAXIMUM SWING OVER TABLE .......................... 10-7/8"

NOMINAL DISTANCE BETWEEN CENTERS .................. 20"

HYDRAULIC TABLE TRAVERSE ....................... 2" TO 240" IPM

TRAVERSE PER TURN OF HANDWHEEL .................... 0.200"

TRAVERSE HANDWHEEL GRADUATIONS .................... 0.001"

SWIVEL TABLE GRADUATED .................... 20 DEGREES, 4" PER FOOT



WHEELHEAD:

WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER .......... 90 DEG.

WHEEL SIZE ........................................ 16" DIAMETER

MAXIMUM WIDTH, FULL WHEEL ......................... 3"

MAXIMUM HYDRAULIC INFEED - ON DIAMETER ............ 0.090"

RAPID INFEED STROKE ............................... 1"

MINIMUM FEED GRADUATIONS - ON DIAMETER ............ 0.000050"

WORK DIAMETER REDUCTION PER REVOLUTION OF

HANDWHEEL ......................................... 0.100"

WORK DIAMETER REDUCTION PER REVOLUTION OF

FINE FEED KNOB .................................... 0.001"

WHEELHEAD MOTOR ................................... 3 HP



WORKHEAD:

WORKHEAD SWIVELS TOWARD WHEELHEAD ................ 90 DEGREES

WORKHEAD SWIVELS AWAY FROM WHEELHEAD ............. 30 DEGREES

WORKHEAD SPINDLE SPEEDS (6) ...................... 60 TO 600 RPM

WORKHEAD SPINDLE NOSE ............................ A2-5"

WORKHEAD MOTOR ................................... 1/4 HP



APPROXIMATE WEIGHT ............................... 4,150 LBS

APPROXIMATE DIMENSIONS ........................ 8'L X 4'W X 6'6"HT



  EQUIPPED WITH:

16" GRINDING WHEEL

UNIVERSAL WHEELHEAD AND UNIVERSAL WORKHEAD

HYDRAULIC TABLE TRAVERSE

AUTO INFEED @ TABLE REVERSALS

AUTO PLUNGE FEED

POWER RAPID WHEELHEAD ADVANCE & RETRACTION

SPARKOUT TIMER

COLLET ATTACHMENT, MOUNTED ON WORKHEAD

HARD FILM MICROSHERE GRINDING WHEEL SPINDLE BEARINGS

CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY LUBRICATED

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS ELECTRICS





** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE **





FOR MORE INFORMATION: Call Andy at 973-497-7600
