NEGRI BOSSI VE 90-350ماكينات حقن اسطمبات

بطاقة الهوية
439645
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2005
الموقع
إيطاليا
رقم المخزن
IT-INJ-NEG-2005-00001

الوصف

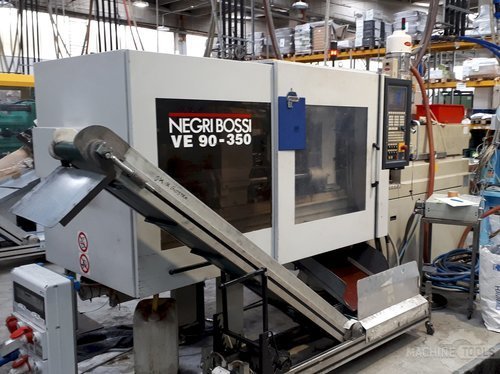

This Negri Bossi VE 90-350 Injection Moulding Machine from 2005 was made in Italy and has a production record of 46300 hours. Equipped with a B&R DIMI EL2 Plus Control unit, this model incorporates a clamping force of 900 kN. This machine includes a new print board for regulation ejector.

المواصفات

Negri Bossi VE 90-350 Injection Moulding Machine

Production Hours: 46300

General Data:
Measurements width: 4850 mm
Measurements depth: 4850 mm
Measurements height: 2070 mm
Machine weight: 4000 kg

Control Unit:
Brand: B&R
Model: DIMI EL2 Plus

Injection Unit:
Screw diameter: 35 mm
Shot weight: 160 g/PS
Stroke volume: 175 cm³
Injection pressure: 2000 bar
Screw speed: 440 rpm
Heating capacity: 7.5 kW
Adjustable heating zones: 3
Nozzle pressure: 400 kN

Clamping Unit:
Clamping force: 900 kN
Opening stroke: 360 mm
Distance between bars: 400X360 mm
Mould height min: 150 mm
Mould height max: 450 mm
Size of mold platens: 590X570 mm
Ejector stroke: 120 mm
Ejector force for / back: 30 kN

Media:
Main electronic connection: 400 V
