NIAGARA HBM-135-10-12الصحافة الفرامل

بطاقة الهوية
439783
علامة تجارية
موديل
الموقع
Florida
الولايات المتحدة الامريكية
رقم المخزن
GMT-1744
الثمن

الوصف

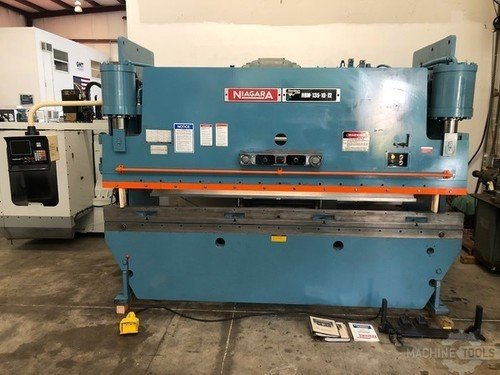

NIAGARA #HBM-135-10-12 12’ X 135 TON HYDRAULIC PRESS BRAKE CNC HURCO #GMT-1744

المواصفات

تحويل المواصفات للمتري
حمولة
135 T
نوع
HYD
طول كلى
144 "
بين مساكن
126 "
المشوار
8 "
أكسات
3
CNC تحكم
CNC (Hurco Auto Bend)

NIAGARA #HBM-135-10-12 12’ X 135 TON HYDRAULIC PRESS

Specifications
Reference # : GMT-1744

Model # : HBM-135-10-12

Serial # : P52854

Year of manufacture: 1988’

Tonnage capacity at bottom of stroke: 135 Ton

Overall length of bed and ram: 12’

Clear distance between housings: 126”

Rated bending capacities, mild steel:

: 11' x 3/16" over 1-1/2" die opening

: 7'6" x 1/4" over 2" die opening

: 6' x 5/16" over 2-1/2" die

Stroke of ram: 8"

Open height: 15"

Closed height: 7"

Throat depth: 7"

Ram speeds:

Advance: 118 I.P.M.

Normal press: 60 I.P.M.

Anti-backbend: 14 I.P.M.

Rapid return: 118 I.P.M.

Hydraulic reservoir: 170 Gallons

Equipped with
HURCO #5C CNC 2 Axis (Control of Ram & Back gauge)

Remote electric foot pedal or ram mounted dual electric palm button for actuation of ram

Dual ram mounted electrical push buttons for inching of ram

Key-lock selector switches for Stroking Selection (Off/Inch/Single Stroke), Actuating Means (Hand/Foot), Return Stroke Selection (Manual/Auto), Set-Up (Off/On), and Ram Arrest (Off/On)

Electrical selector switch for control of ram speed (Rapid to Anti Backbend/Rapid to Normal and Normal)

Mechanical assembly with scale, micrometer adjustment, and dual micro-switches for setting stroke length

Potentiometer and micro-switch for adjustment of ram pressure in pressing mode with tonnage gage located in front of ram

Ram tilt control with micrometer adjustment

Full length lower filler block

Full complement of sectional upper die clamps

Bed and ram machined for angles

Dovetail Slots on front and rear of bed, and front to back "T"-slots

Self-lubricating non-metallic gibs

Machine manuals

25 H.P. 3/60/230-460 volt hydraulic pump motor and electrical controls

Machine is wired for 230 volt operation.

Approximate weight
20,500 Lbs.
Approximate dimensions:
149” L x 49’’ W x 101’’ H
Location:
F.O.B. Bradenton, Florida
