EISEN CT-1118CNCمخارط الدقة

بطاقة الهوية
439898
علامة تجارية
موديل
السنة
2000
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
158091
الثمن

الوصف

11" Swing 18" Centers Eisen CT-1118 CNC CNC LATHE, Fanuc OiMate Control, 5C Collet Closer

المواصفات

تحويل المواصفات للمتري
الأرجحة
11 "
المراكز
18 "
القدرة
3 hp
RPM
4000 rpm

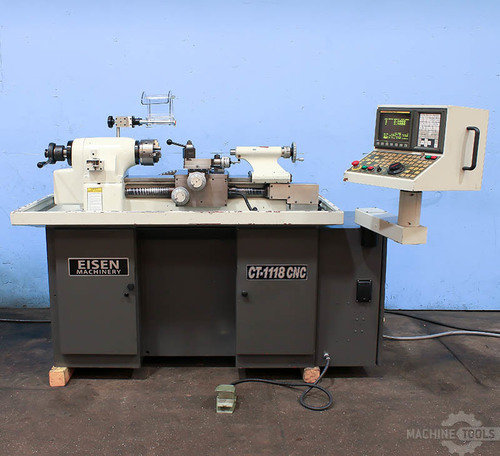

11" X 18" EISEN 2-AXIS CNC/MANUAL FLAT BED LATHE

MODEL: CT-1118CNC, S/N: 9408057, NEW: 2000's



SPECIFICATIONS:

SWING OVER BED ............................. 11"

SWING OVER CROSS SLIDE ..................... 6"

MAX DISTANCE BETWEEN CENTERS ............... 18"

HOLE THRU SPINDLE .......................... 1.25"

CROSS SLIDE TRAVEL (X) ..................... 6.25"

LONGITUDINAL TRAVEL (Z) .................... 13.5"

SPINDLE TAPER .............................. HARDINGE TAPER

TAPER IN SPINDLE ID ........................ 5C COLLET CAPACITY

SPINDLE SPEED RANGE, INF VAR ............... 0 - 4000 RPM

TAILSTOCK QUILL TRAVEL ..................... 3.7"

TAILSTOCK QUILL DIAMETER ................... 2.36"

TAILSTOCK QUILL TAPER HOLE ................. #2 MT

APPROX WEIGHT .............................. 2,200 LBS

APPROX DIMENSIONS .......................... 81" X 40" X 60"





EQUIPPED WITH:

- FANUC 0iMATE-TB CNC CONTROL WITH FANUC X & Y SERVO MOTORS

- YASKAWA VFD SPINDLE DRIVE

- 6" 3-JAW CHUCK

- QUICK CHANGE TOOL POST

- 2-AXIS DIGITAL READOUT DURING MANUAL OPERATION

- PRECISION BALLSCREWS

- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE

- HARDENED & GROUND BED PLATE

- LEVER TYPE 5-C COLLET CLOSER

- 5 HORSE POWER 3/60/220 VOLT SPINDLE DRIVE MOTOR & ELEC CONTROLS



INSPECT UNDER POWER IN A NEW JERSEY WAREHOUSE



CONDITION:    ***  EXCELLLENT  ***













FOR MORE INFORMATION: Call David at 973-497-7570
