NEGRI BOSSI V 70-200ماكينات حقن اسطمبات

بطاقة الهوية
440003
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2001
الموقع
إيطاليا
رقم المخزن
IT-INJ-NEG-2001-00001

الوصف

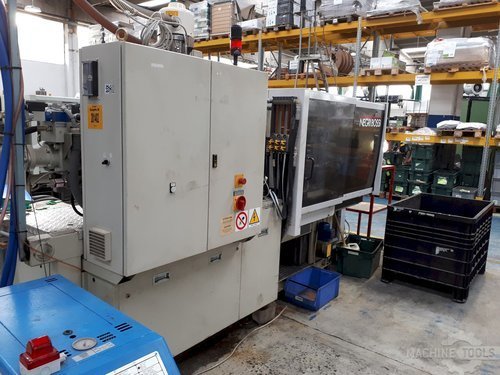

This Negri Bossi V 70-200 Injection Moulding Machine was made in Italy in 2001 and counts with approximately 48000 production hours. Operated through a DML 2 Control unit, this machine is capable of working with a clamping force of 700 kN.

المواصفات

Negri Bossi V 70-200 Injection Moulding Machine

Production Hours: 48000

General Data:
Measurements width: 4065 mm
Measurements depth: 1250 mm
Measurements height: 1890 mm
Machine weight: 2450 kg

Control Unit:
Brand: DML 2

Injection Unit:
Screw diameter: 32 mm
Shot weight: 109 g/PS
Stroke volume: 120 cm³
Injection pressure: 1700 bar
Plasticising rate max: 15 g/PS
Screw speed: 320 rpm
Heating capacity: 6 kW
Adjustable heating zones: 3
Nozzle pressure: 23 kN

Clamping Unit:
Clamping force: 700 kN
Opening stroke: 310 mm
Distance between bars: 360X315 mm
Mould height min: 120 mm
Mould height max: 400 mm
Size of mold platens: 530X495 mm
Ejector stroke: 100 mm
Ejector force for / back: 35 kN

Media:
Main electronic connection: 400 V
