NEGRI BOSSI V 40-150ماكينات حقن اسطمبات

بطاقة الهوية
440006
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2002
الموقع
إيطاليا
رقم المخزن
IT-INJ-NEG-2002-00001

الوصف

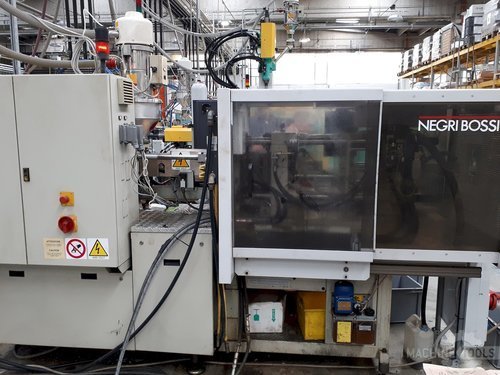

This Negri Bossi V 40-150 Injection Moulding Machine was built in Italy in 2002 and has a production record of approximately 45000 hours. Equipped with a DML 2 Plus Control unit, this model presents a well maintained status. Must be noted that the IPC of this machine has only 11250 hours.

المواصفات

Negri Bossi V 40-150 Injection Moulding Machine

Production Hours: 45000

General Data:
Measurements width: 3560 mm
Measurements depth: 1180 mm
Measurements height: 1800 mm
Machine weight: 1900 kg

Control Unit:
Brand: DML 2 Plus

Injection Unit:
Screw diameter: 28 mm
Shot weight: 84 g/PS
Stroke volume: 92 cm³
Injection pressure: 1700 bar
Plasticising rate max: 10 g/PS
Screw speed: 320 rpm
Heating capacity: 4.5 kW
Adjustable heating zones: 3
Nozzle pressure: 18 kN

Clamping Unit:
Clamping force: 400 kN
Opening stroke: 255 mm
Distance between bars: 285X285 mm
Mould height min: 100 mm
Mould height max: 300 mm
Size of mold platens: 420X420 mm
Ejector stroke: 75 mm
Ejector force for / back: 27 kN

Media:
Main electronic connection: 400 V
