CHIRON MILL 800مراكز التجهيز العمودي

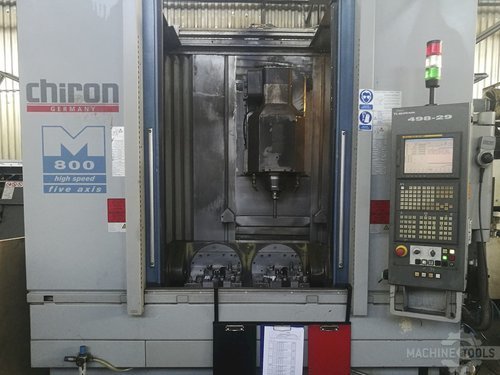

This CHIRON MILL 800 Machining Center (Vertical) was built in 2006 in Germany. This machine was completely mechanically and partially electronically retroffited in the year 2016 by CHIRON. Since then, this machine shows a production record of 1000 hours. Equipped with a Fanuc 18i-MB5 control unit, this 5-axis machine includes 2 rotar-titling table units (Peiseler ZAS 280) of 280 mm of diameter and a toolholder HSK63.
تحويل المواصفات للمتري
CHIRON MILL 800 Machining Center (Vertical) Production Hours: 1000 General Data: Measurements width: 4500 mm Measurements depth: 3500 mm Measurements height: 3300 mm Machine weight: 7800 kg Control Unit: Brand: Fanuc Model: 18i-MB5 CNC main language: English Main Drive: Number of spindles: 1 Spindle speed range: 12000 rpm Movement: X-Axis Movement: 800 mm Y-Axis Movement: 450 mm Z-Axis Movement: 410 mm Workpiece: Workpiece weight: 200 kg Table: Outer length: 2x280 mm Tools: Slots in storage: 40 Media: Main electronic connection: 400 V 50 Hz Power consumption: 36 kVA
