MAZAK M5N-2000مخارط CNC

بطاقة الهوية
440052
علامة تجارية
موديل
النوع
السنة
2018
رقم المسلسل
138189
الموقع
Illinois
الولايات المتحدة الامريكية
الثمن

الوصف

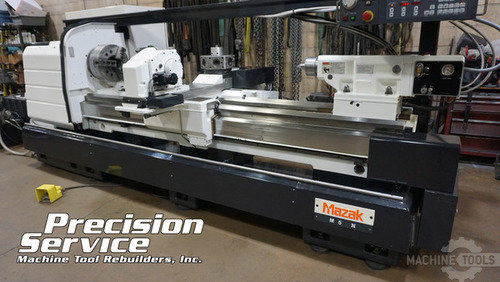

Mazak Lathe Rebuilt Model: M5N / S/N: 138189 Max. Swing Over Bed: 24" Max. Swing Over Carriage: 13” Max. Turning Diameter: 13.75” Distance Between Centers: 80” Spindle Speed: 2-2200 RPM Spindle Motor: 30 HP AC Features: Manual Steady Rest Manual Tailstock 8 Front O.D. + 6 Rear I.D. Tools T Plus Conversational Control Chip Conveyor Factor Chip Covers Coolant Pump & Tank Precision Realignment Service and Repairs Performed: 1. Machine, scrape, grind and fit all way surfaces to full bearing, assuring longer life of all necessary components. 2. Ground bed ways. 3. Ground clamping areas of bed. 4. Scraped and aligned headstock base to bed ways. 5. Installed new turcite to bottom of saddle ways. 6. Scraped saddle to bed, keeping saddle square to spindle. 7. Way ground top of “X” axis ways. 8. Scraped, flaked and mastered bottom ways of cross slide to saddle. 9. Scraped and flaked “X” and “Z” axis gibs, gibs to have full adjustment. 10. Replaced tailstock seals and bearings. 11. Installed new turcite to tailstock base. 12. Scraped and mastered tailstock to bed way keeping parallel to spindle and spindle center line. 13. Installed seals, packings and bearings in both turrets. 14. Aligned front and rear turret to spindle center line. 15. Remanufactured “X” and “Z” axis ball screws. 16. Installed new thrust bearings in “X” and “Z” axis. 17. Scrape and aligned ball screw brackets for flatness (“X” and “Z” axis). 18. Inspected front and rear index rings for flatness and/or wear. 19. Precision aligned “X” and “Z” axis ball screws. 20. Cleaned and inspected hydraulic systems. 21. Replaced filters. 22. Replaced all sight glasses as required. 23. Replaced all lubrication meters and lines as required to assure proper lubrication to all required areas. 24. Cleaned and flushed the oil and coolant system. 25. Installed all new way wipers. 26. Installed new spindle drive belts. 27. Painted machine to new Mazak color code.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
15 "
أكسات
2
القدرة
30 hp
ماكس RPM
2200 rpm
الأرجحة
24 "
بالقطع طول
82 "
غراب
Yes
الأبعاد
221" x x119" x 83"
الوزن
14,800 Lbs
CNC تحكم
CNC (Mazatrol T-Plus)
