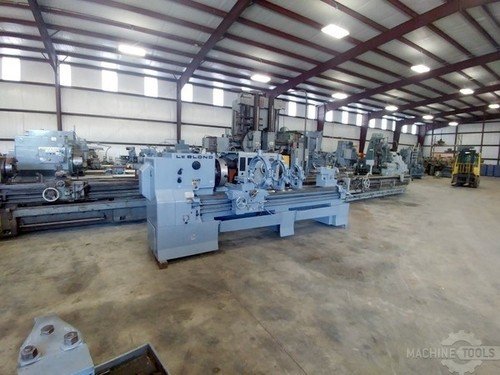

25" X 96" Used LeBlond Makino Servo Shift Engine Lathe Ref.#L3000213
Model: Servo Shift
Serial No. 3H-1001 New: 1966

Swing Over Bed Ways……………………..28"
Swing Over Cross Slide……………………18-1/4"
Center Distance………………………………..96"
Spindle Hole……………………………………...2-1/4"
Spindle Speeds……………………………….18 To 720 Rpm's
Spindle Nose…………………………………...L-2
Chuck Size……………………………………….18" 4 Jaw
Feeds…………………………………………….....0044 To .205
Threads Inch…………………………………....3-1/2 TO 64 TPI
Threads Metric………………………………...No
Tail Stock Quill Diameter………………...3"
Tail Stock Quill Travel……………………...6-1/2"
Tail Stock Taper……………………………....# 5 Morse
Steady Rest (2 Roller Type)…………….7" & 12"
Main Motor…………………………………......15 hp
Weight……………………………………………....9,000 Lbs.
Floor Space…………………………………….166" X 50"
Height……………………………………………...60"
Coolant…………………………………………...Yes
Hardened & Ground Replaceable Bed Ways..Yes
Taper Attachment………………………….Yes
Steady Rest Roller Type 6"…………...Yes
Steady Rest Roller Type 10"…………Yes
Steady Rest Roller Type 16"…………Yes
Full Length Splash Guard…………….No

Note: Machine Has Been Cleaned, Painted & Cycled.

Condition Good

Price: Please Call
