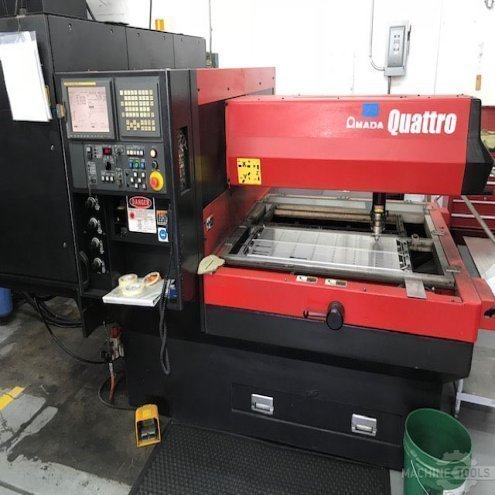

AMADA QUATTRO 2000قاطعات الليزر

الولايات المتحدة الامريكية
الولايات المتحدة الامريكية
المواصفات
2000 WATT AMADA QUATTRO LASER
22,270 HOURS
MFG:2011
Specifications
Travels
X axis: 49.6"
Y axis: 49.6"
Z axis: 3.9" for 5" lens, 1.40" for 7.5" lens
Beam delivery system: Flying optics
Cutting capacity: 1/2" MS
Maximum sheet size: 4' x 4'
Maximum load weight: 176 lbs.
Machine weight: 8,488 lbs
Approximate dimensions: 122" L x 86" W x 65" H
Control model: Fanuc 160iL
Control method: X and Y simultaneous; Z-axis, non-contact height sensor
Data input:3.5" FD and MDI
Memory capacity: 126 KB
Laser Oscillator (resonator)
Model: Fanuc AF 2000E
Rated laser output: 2000 watts
Laser gas: HE, N2, C02
Gas consumption: 10 liter/hour
Equipped with:
Fanuc 160iL control
Fanuc AF2000E resonator (oscillator)
Ball screw drives
Dust collector
Chiller
Features and advantages
Compact design
Lower running cost
One-piece construction-frame and table
